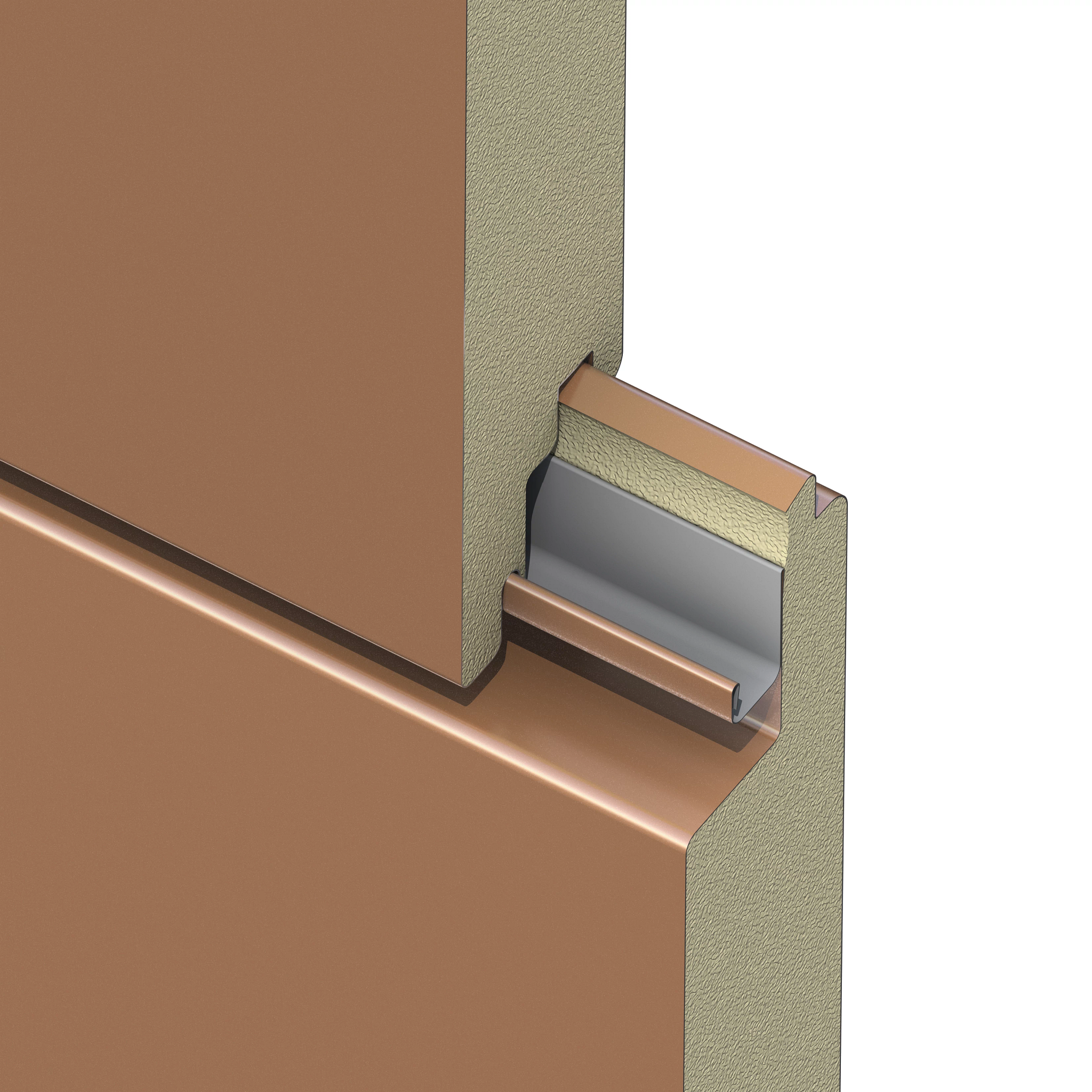

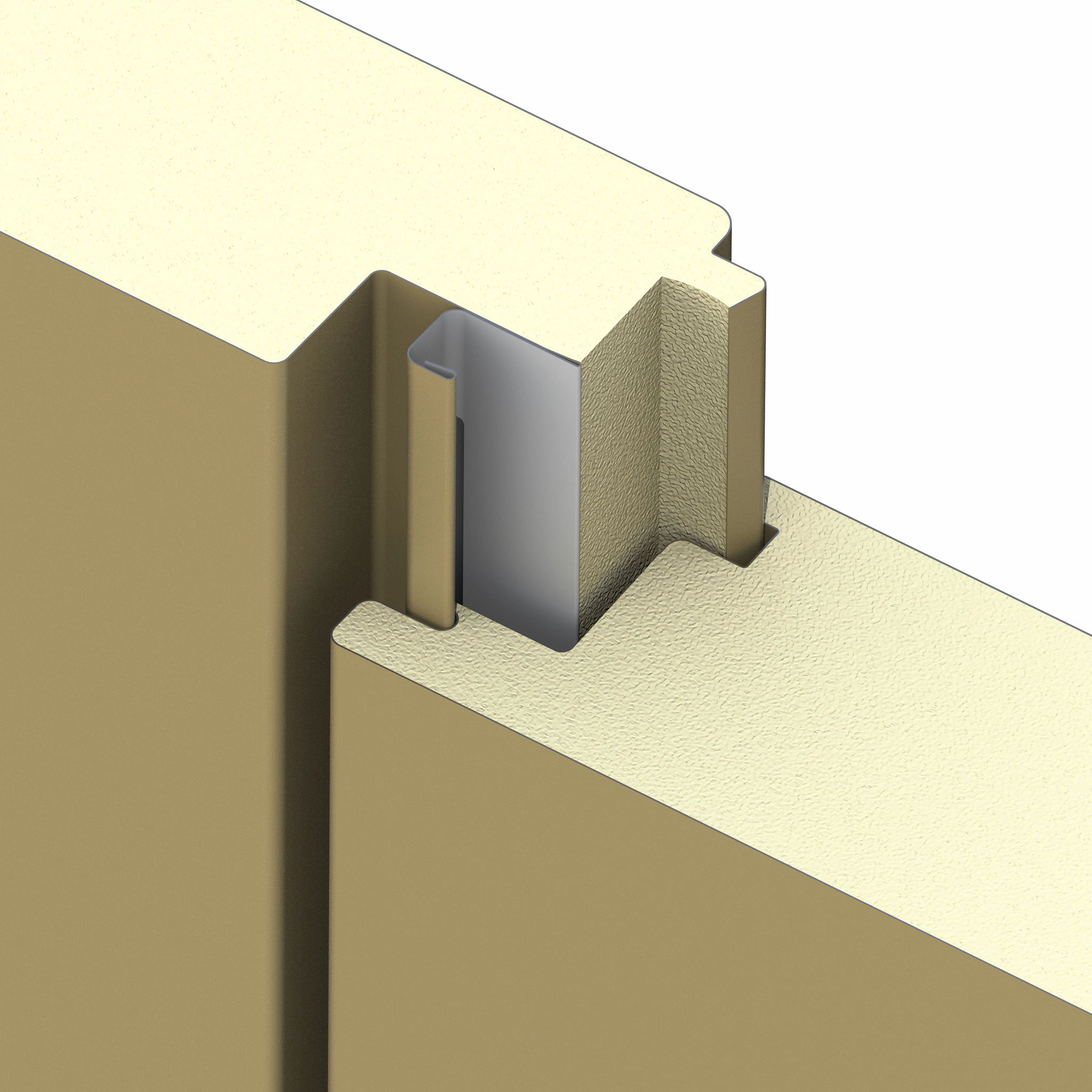

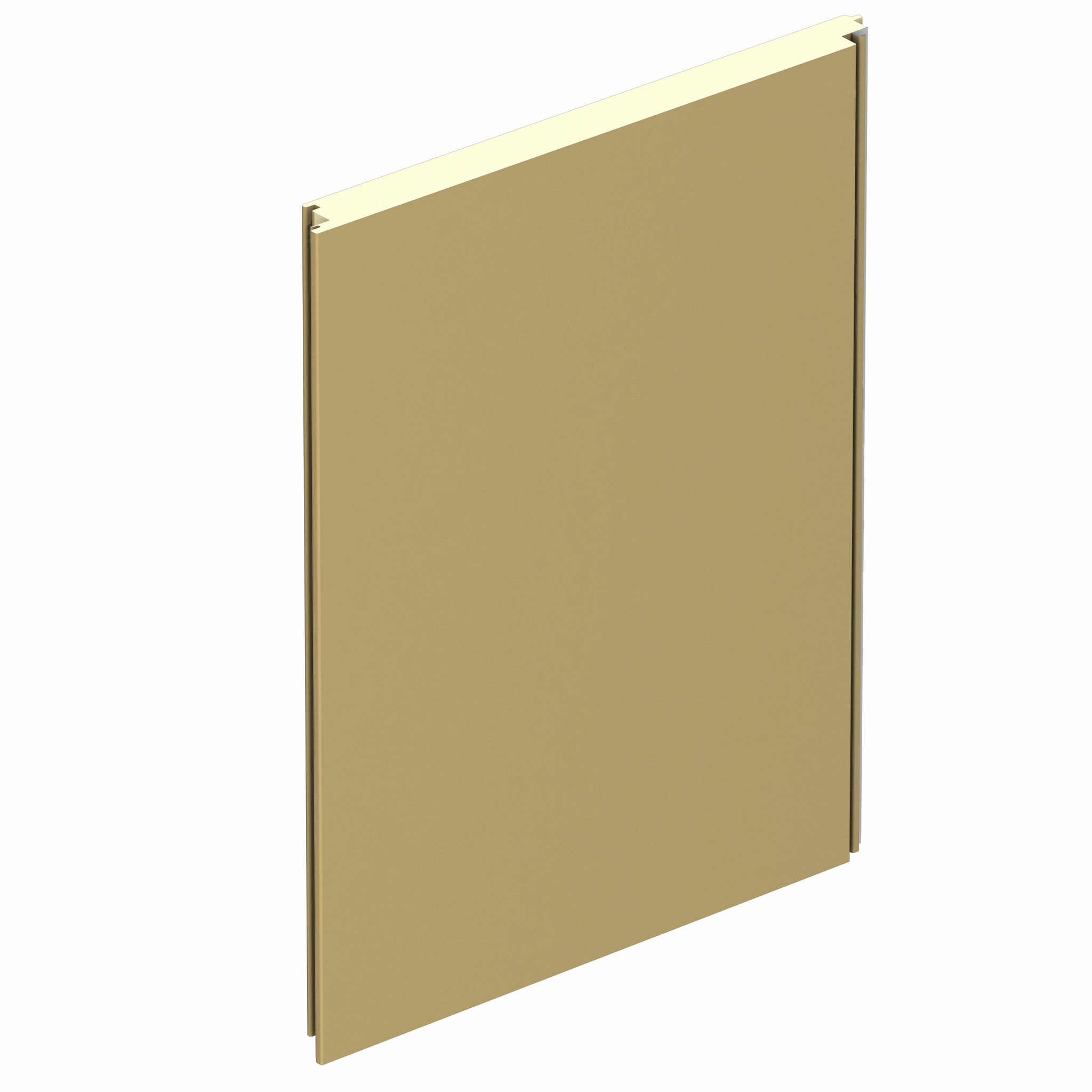

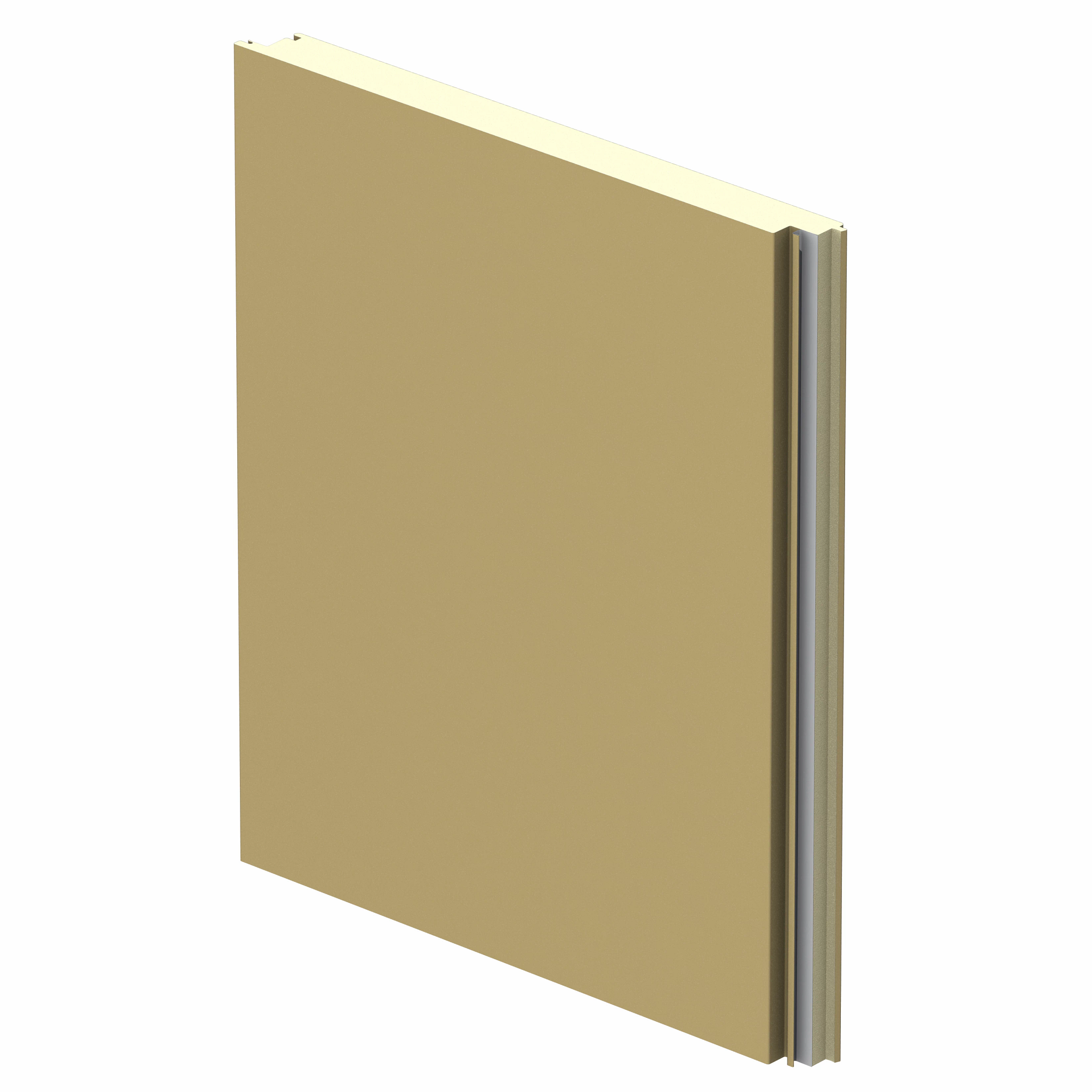

Formawall Dimension Series panels provide a modern, monolithic appearance to the building façade. This system works as a single component to provide all necessary building control layers along with an outstanding aesthetic. Formawall Dimension Series panels integrate easily with our window, louver and sunshade systems to provide a complete building envelope system. This system provides an uninterrupted appearance in horizontal and vertical applications with concealed clips, fasteners, sealants, and the standard Insulated Metal Vertical (IMV) joint.
2″ [51mm]
2.5″ [64mm]
3″-T [76mm]
R-16 (U=0.069)
R-20.1 (U=0.056)
R-24.1 (U=0.045)
Standard Modules:
24″ [610mm]
30″ [762mm]
36″ [914mm]
Custom Modules:
10″- 40″ [254-1016mm]
Smooth -16′ [4.9m] max.
Smooth Striated – 20′ [6.1m] max.
Embossed Striated – 37′ [11.3m] max.
Embossed – 37′ [11.3m] max.
304 Stainless – 16′ [4.9m] max.
