RAINSCREEN CONCEALED FASTENER PANELS

CONCEPT SERIES®

A common-lock joint that allows the panels to be integrated with each other.

Concept Series

One Unique Geometry, Infinite Combinations

Originally developed at the request of legendary Japanese architect Fumihiko Maki, Concept Series takes the platform for an asymmetric, trapezoidal rib profile to the next level. Concept Series back-ventilated, concealed fastener rainscreen panels are unmatched in their strength and combination of aesthetic options.

Concept Series Metal Panel
Concept Series Metal Panel

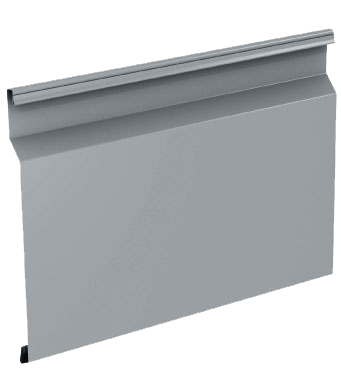

CS-200

CS-200

Concept CS-200 interchangeable single-skin metal panels have 12” [305mm] wide coverage, 7/8” [22mm] deep profiled panels featuring one asymmetrical rib.

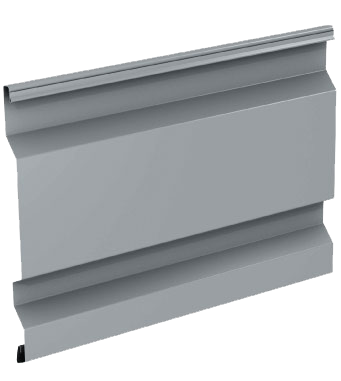

CS-210

CS-210

Concept CS-210 interchangeable single-skin metal panels have 12” [305mm] wide coverage, 7/8” [22mm] deep profiled panels featuring two asymmetrical ribs.

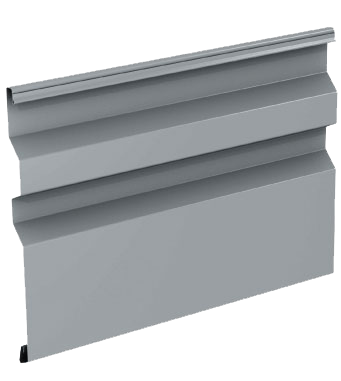

CS-220

CS-220

Concept CS-220 interchangeable single-skin metal panels have 12” [305mm] wide coverage, 7/8” [22mm] deep profiled panels featuring two asymmetrical ribs.

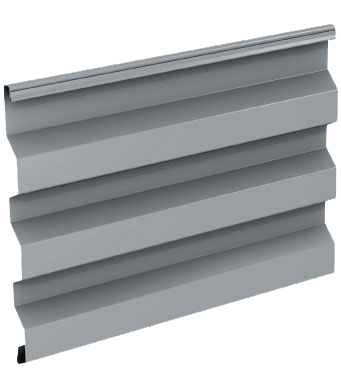

CS-260

CS-260

Concept CS-260 interchangeable single-skin metal panels have 12” [305mm] wide coverage, 7/8” [22mm] deep profiled panels featuring three asymmetrical ribs.

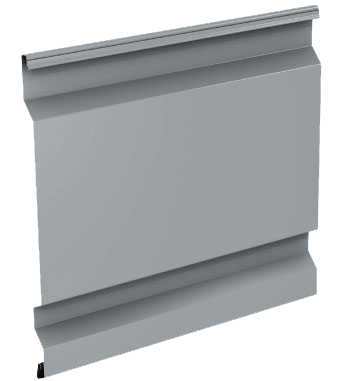

CS-610

CS-610

Concept CS-610 interchangeable single-skin metal panels have 16” [406mm] wide coverage, 7/8” [22mm] deep profiled panels featuring two asymmetrical ribs.

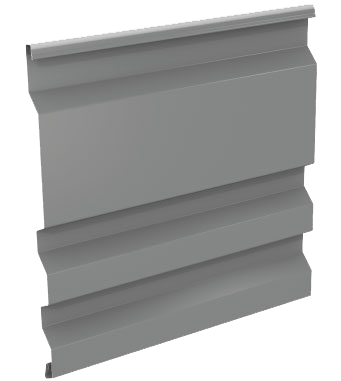

CS-612

CS-612

Concept CS-612 interchangeable single-skin metal panels have 16” [406mm] wide coverage, 7/8” [22mm] deep profiled panels featuring three asymmetrical ribs.

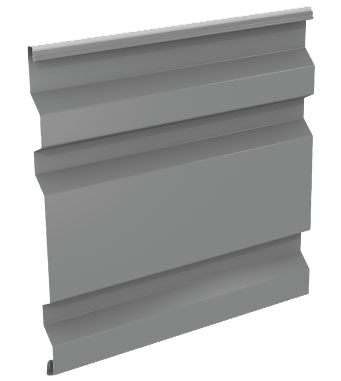

CS-613

CS-613

Concept CS-613 interchangeable single-skin metal panels have 16” [406mm] wide coverage, 7/8” [22mm] deep profiled panels featuring three asymmetrical ribs.

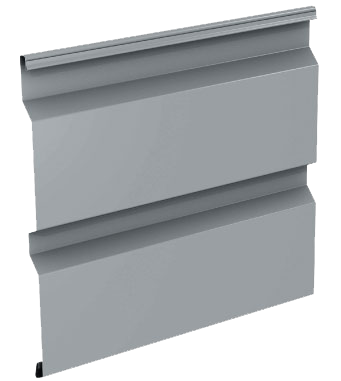

CS-620

CS-620

Concept CS-620 interchangeable single-skin metal panels have 16” [406mm] wide coverage, 7/8” [22mm] deep profiled panels featuring two asymmetrical ribs.

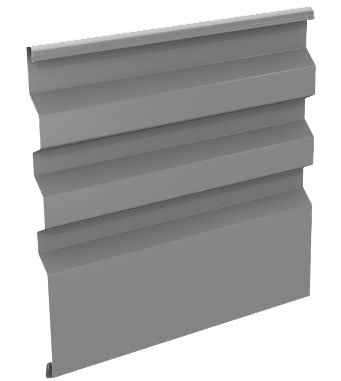

CS-623

CS-623

Concept CS-623 interchangeable single-skin metal panels have 16” [406mm] wide coverage, 7/8” [22mm] deep profiled panels featuring three asymmetrical ribs.

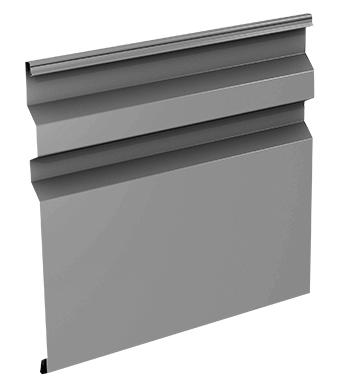

CS-630

CS-630

Concept CS-630 interchangeable single-skin metal panels have 16” [406mm] wide coverage, 7/8” [22mm] deep profiled panels featuring two asymmetrical ribs.

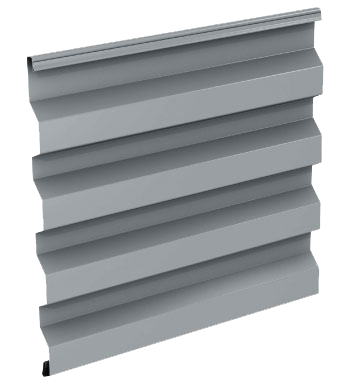

CS-660

CS-660

Concept CS-660 interchangeable single-skin metal panels have 16” [406mm] wide coverage, 7/8” [22mm] deep profiled panels featuring four asymmetrical ribs.


  • Featuring concealed fasteners and a common-lock joint that allows the panels to be integrated with each other.
  • Installed vertically or horizontally with an unbroken appearance adding to the product’s aesthetic versatility
  • Wall panels may be installed in a variety of rainscreen applications to form a complete wall system
  • Designed to be used with CSC-1,2, or 3 attachment clips

CENTRIA knows coil coating systems. For over 100 years, we’ve been producing coatings for metal wall and roof systems that offer industry leading form and functionality, in addition to a vast range of color options.

ALLURA NATURAL STONE SERIES

ALLURA NATURAL STONE SERIES

CENTRIA’s Allura Coating System is a premium, field-proven fluoropolymer coating featuring a matte, low-gloss finish combined with a subtle aggregate texture. The Allura Coating System is factory coil coated, which makes it highly durable. The Natural Stone Series features three stone-like, cementitious colors that perfectly match the color and texture of stonework or masonry.


ALLURA TERRA COTTA SERIES

ALLURA TERRA COTTA SERIES

CENTRIA’s Allura Coating System is a premium, field-proven fluoropolymer coating featuring a matte, low-gloss finish combined with a subtle aggregate texture. The Allura Coating System is factory coil coated, which makes it highly durable. The Terra Cotta Color Series features three warm, earth tone colors that offer outstanding overall adhesion and color consistency, while perfectly matching the color and texture of terra cotta.


CELESTIAL EFFECTS

CELESTIAL EFFECTS

Celestial Effects PVDF coating system offers deep, brilliant colors that shimmer in the light, giving your walls a luminous effect. Choose from six colors with extraordinary color and gloss retention on a variety of substrates. Celestial Effects coating system provides extreme weather performance and resistance to fading, chalking, dirt and stains. Available for coil and extrusion applications, its flexibility and formability allows you to add a unique aesthetic to virtually any project.


DURAGARD

DURAGARD

A premium, high-build architectural finish that provides premium performance in color retention and fade resistance.


DURAGARD PLUS

DURAGARD PLUS

Duragard Plus coatings are premium high-build architectural finishes that provide premium performance in color retention and fade resistance. Duragard Plus coatings provide an added level of protection with an additional 0.8 mil PVDF clear top coat.


FLUOROFINISH®

FLUOROFINISH®

The Fluorofinish coating system is a durable, solid-color finish for architectural applications. These graffiti-resistant, PVDF coatings are field-proven, high performance exterior finishes. They provide outstanding resistance to ultraviolet rays, exceptional color retention and resistance to chalking and chemical degradation.


FLUOROFINISH® PURE

FLUOROFINISH® PURE

The Fluorofinish Pure coating system is a durable, solid-color finish for architectural applications. Formulated with the environment and life safety in mind, this PVDF coating system is Red List complaint thanks to the removal of hexavalent chromium, PFOA, lead and other undesirable ingredients. Fluorofinish Pure is ideal for projects with the highest environmental requirements or for any project where a customer desires an ultra-sustainable building envelope.


IMPRESSIONS™ COATING SYSTEMS

IMPRESSIONS™ COATING SYSTEMS

Impressions is a 3-coat system which simulates the looks of natural elements, including wood and specialty metals. This print finish is an ideal alternative to emulate these looks without the maintenance or expense.


KOLORSHIFT IRIDESCENT SERIES

KOLORSHIFT IRIDESCENT SERIES

The Kolorshift Series Coating System truly re-imagines the design possibilities of color with exterior metal walls that shift in color depending on the viewing angle or direction of sunlight. The end result is a continuous iridescent color gradient.


SUNDANCE AM

SUNDANCE AM

A premium, 3-coat fluoropolymer coating that has a special metallic effect plus a clear coat for additional protection. This coating provides outstanding resistance to ultraviolet radiation resulting in exceptional color retention as well as resistance to chalking and chemical degradation.


SUNDANCE MICA

SUNDANCE MICA

A 2-coat system that provides a pearlescent appearance, and is an excellent, cost effective alternative to metallic finish systems requiring clear coats. Sundance Mica provides outstanding resistance to ultraviolet radiation resulting in exceptional color retention and resistance to chalking and chemical degradation.


VERSACOR ELITE AM

VERSACOR ELITE AM

Versacor Elite AM is an excellent metallic effect color coating for corrosive architectural applications. The coating consists of a 0.5 mil clear top coat, 0.8 mil PVDF color coat with aluminum flakes applied over the 2-mil-thick Versacor Elite Barrier Coat.


VERSACOR ELITE MX

VERSACOR ELITE MX

The Versacor Elite MX coating system is an excellent pearlescent effect color coating for corrosive architectural applications. The coating consists of a 0.8 mil FEVE top coat with mica flakes applied over the 2-mil-thick Versacor Elite Barrier Coat.


VERSACOR ELITE PF

VERSACOR ELITE PF

Versacor Elite PF is an excellent solid color coating for corrosive architectural applications. The coating consists of a 0.8 mil FEVE top coat applied of the 2-mil-thick Versacor Elite Barrier Coat.
