ARCHITECTURAL INSULATED METAL PANELS

FORMAWALL DS60®

THE COMPLETE PERFORMANCE BUILDING ENCLOSURE SYSTEMS

Share

Share

DS60®

AVAILABLE IN HORIZONTAL AND VERTICAL PROFILES

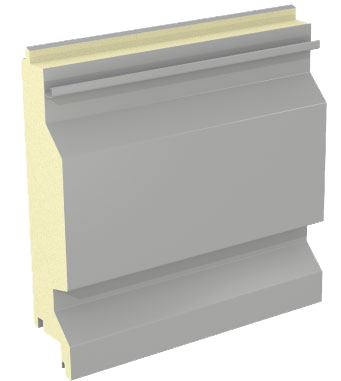

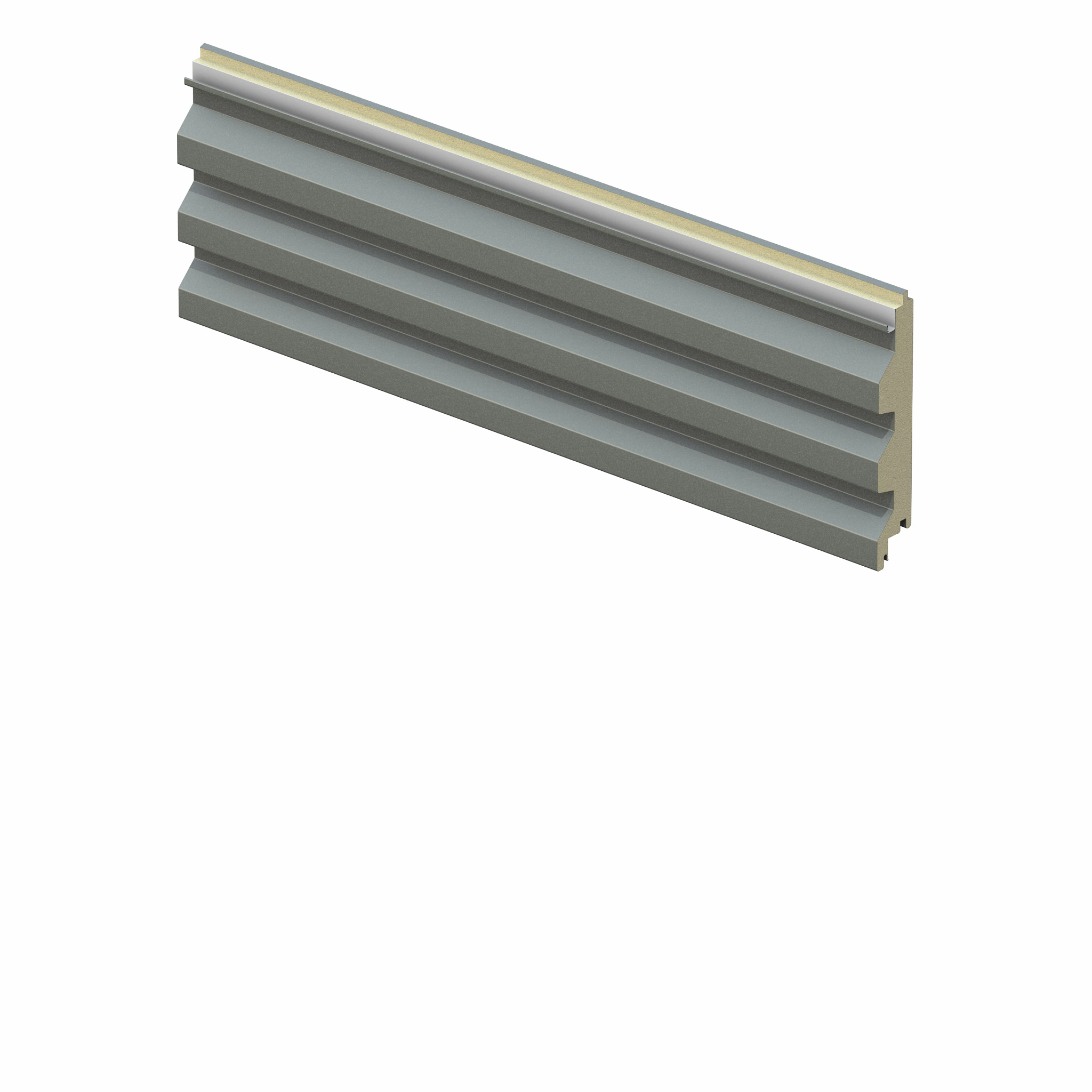

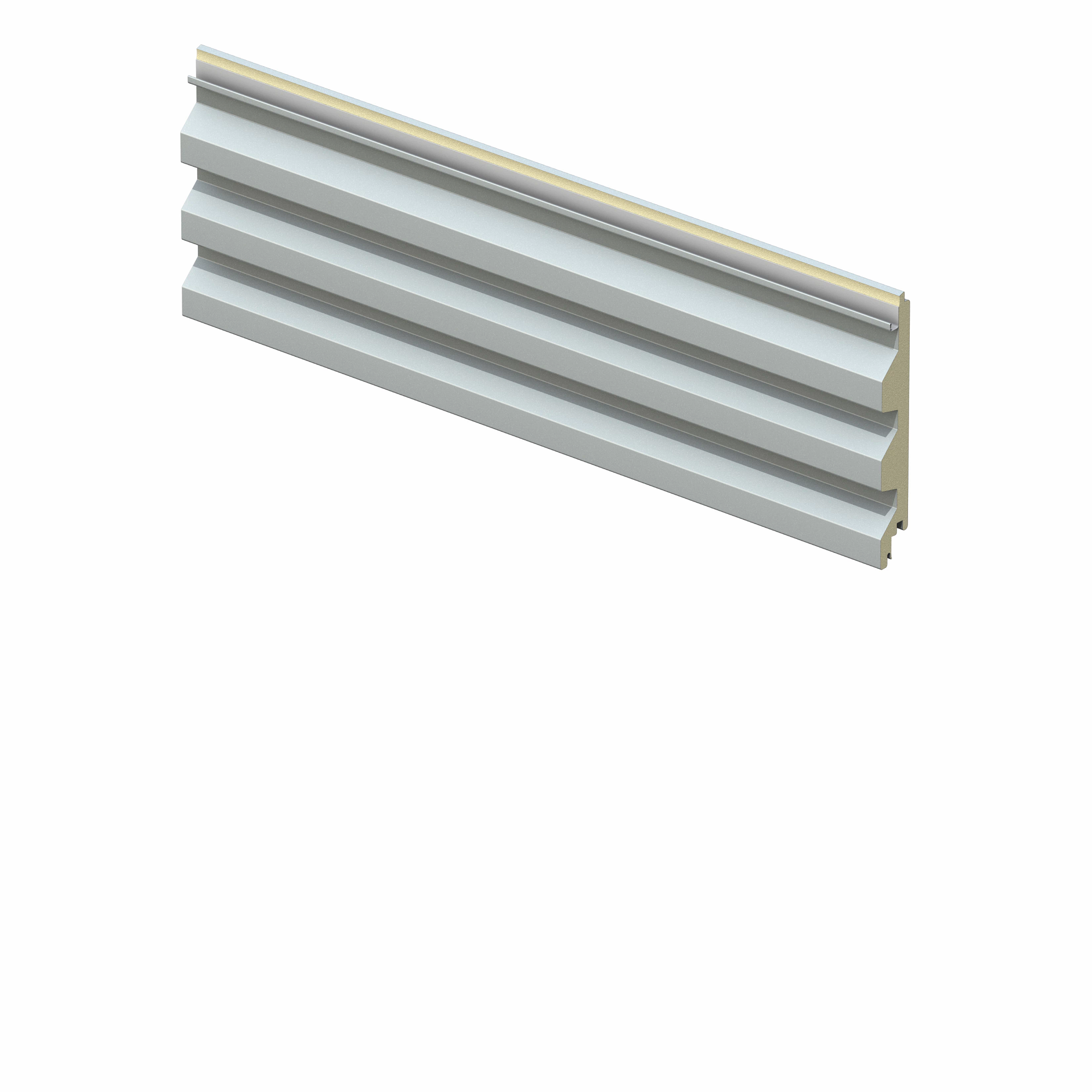

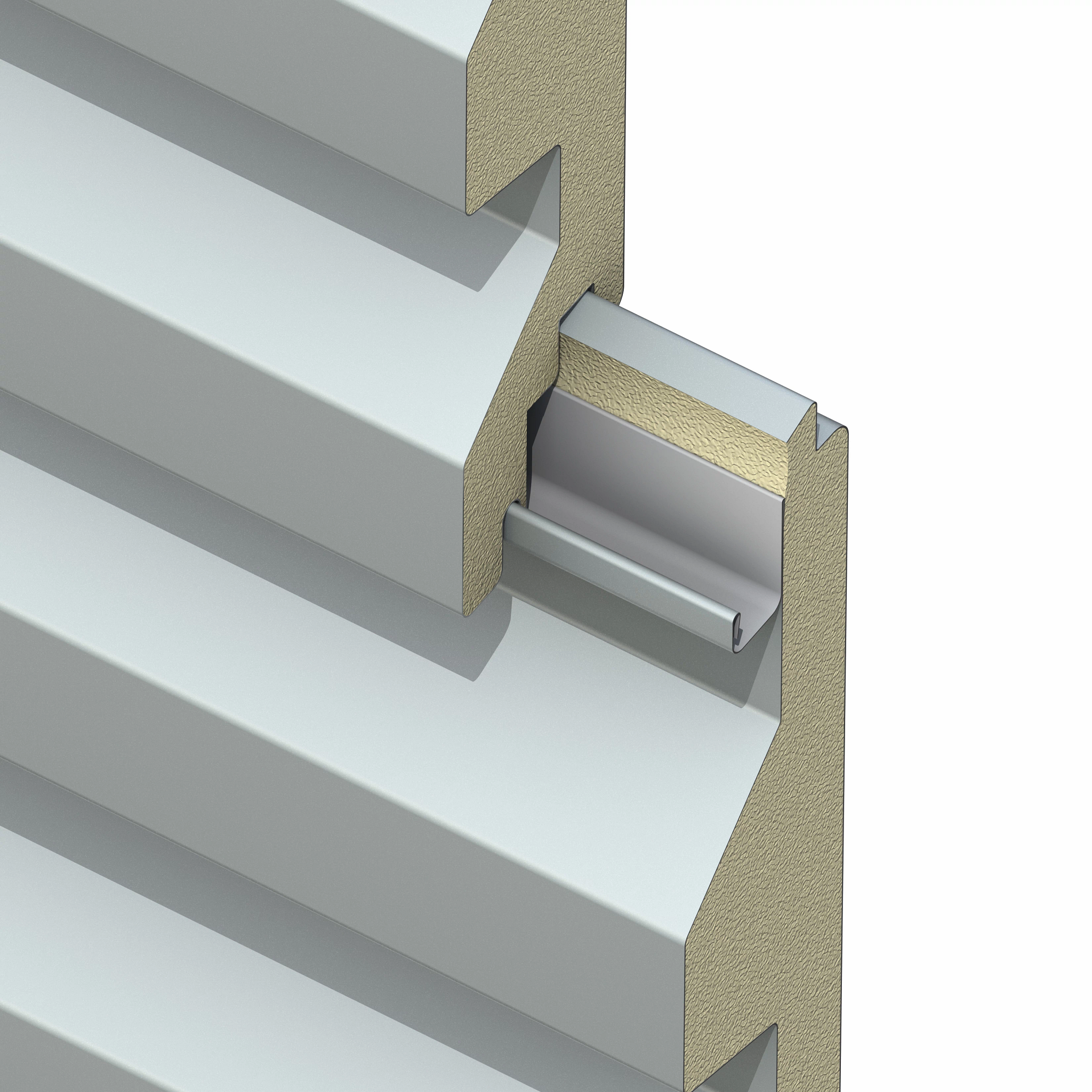

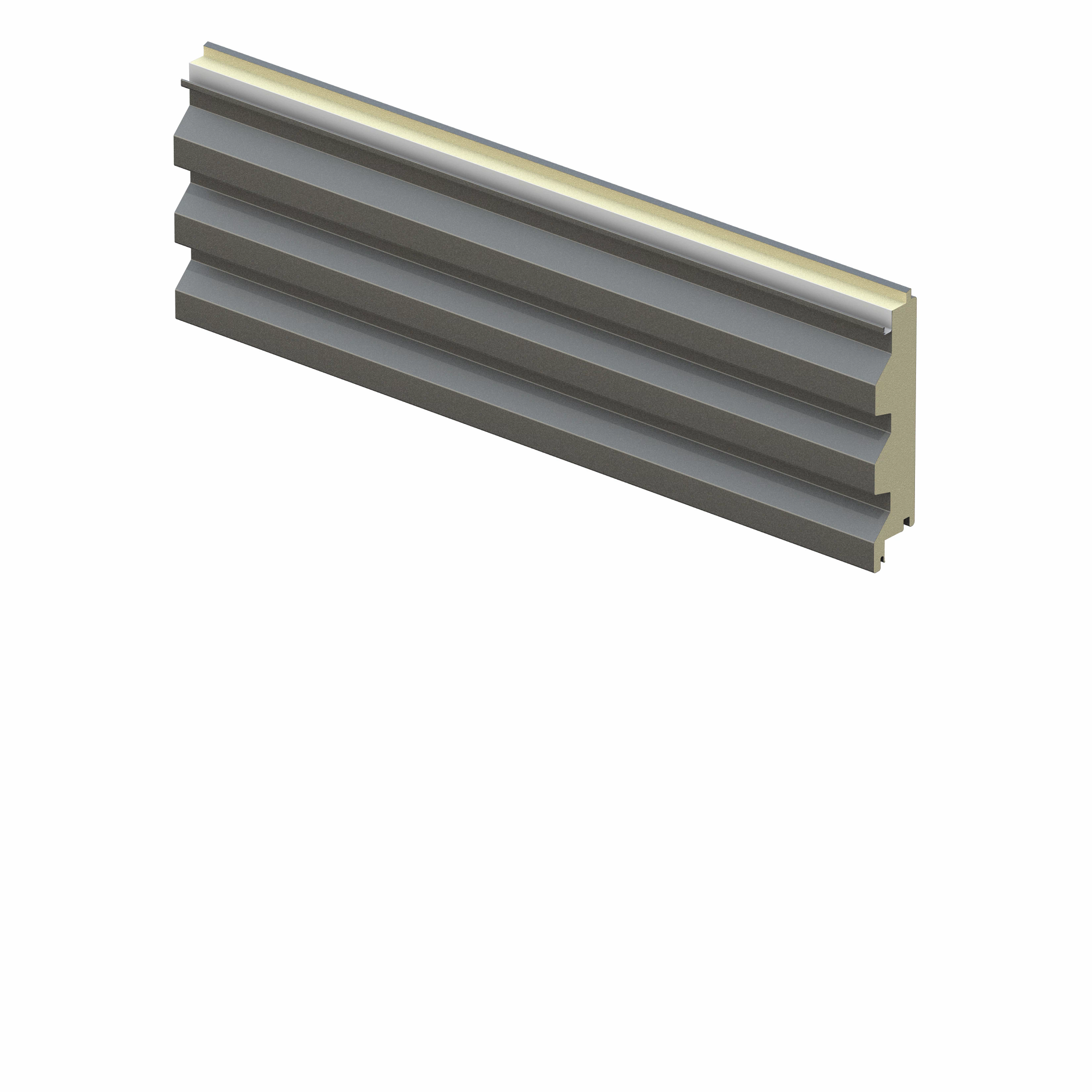

Formawall Dimension Series DS60 Profiles provide outstanding aesthetics and value, with maximum thermal performance and moisture control. Fully profiled with three steep slopes, Formawall DS60 panels produce the ultimate textured wall. This option can be integrated with flat or other profiled panels as well as Formavue Windows, CS Sunshades, CS Louvers and translucent panels.

product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
THICKNESS

2″ [51mm]

2.5″ [64mm]

3″-T [76mm]

THERMAL VALUES

R-9.6 (U=0.104)

R-13.3 (U=0.075)

R-17 (U=0.059)

PANEL WIDTH

12″ [305mm]

PANEL LENGTH

Smooth –20′ [6.1m] max.

Embossed – 37′ [11.3m] max.
