ARCHITECTURAL INSULATED METAL PANELS

FORMAWALL DS58®

THE COMPLETE PERFORMANCE BUILDING ENCLOSURE SYSTEMS

Share

Share

DS58

AVAILABLE IN HORIZONTAL AND VERTICAL PROFILES

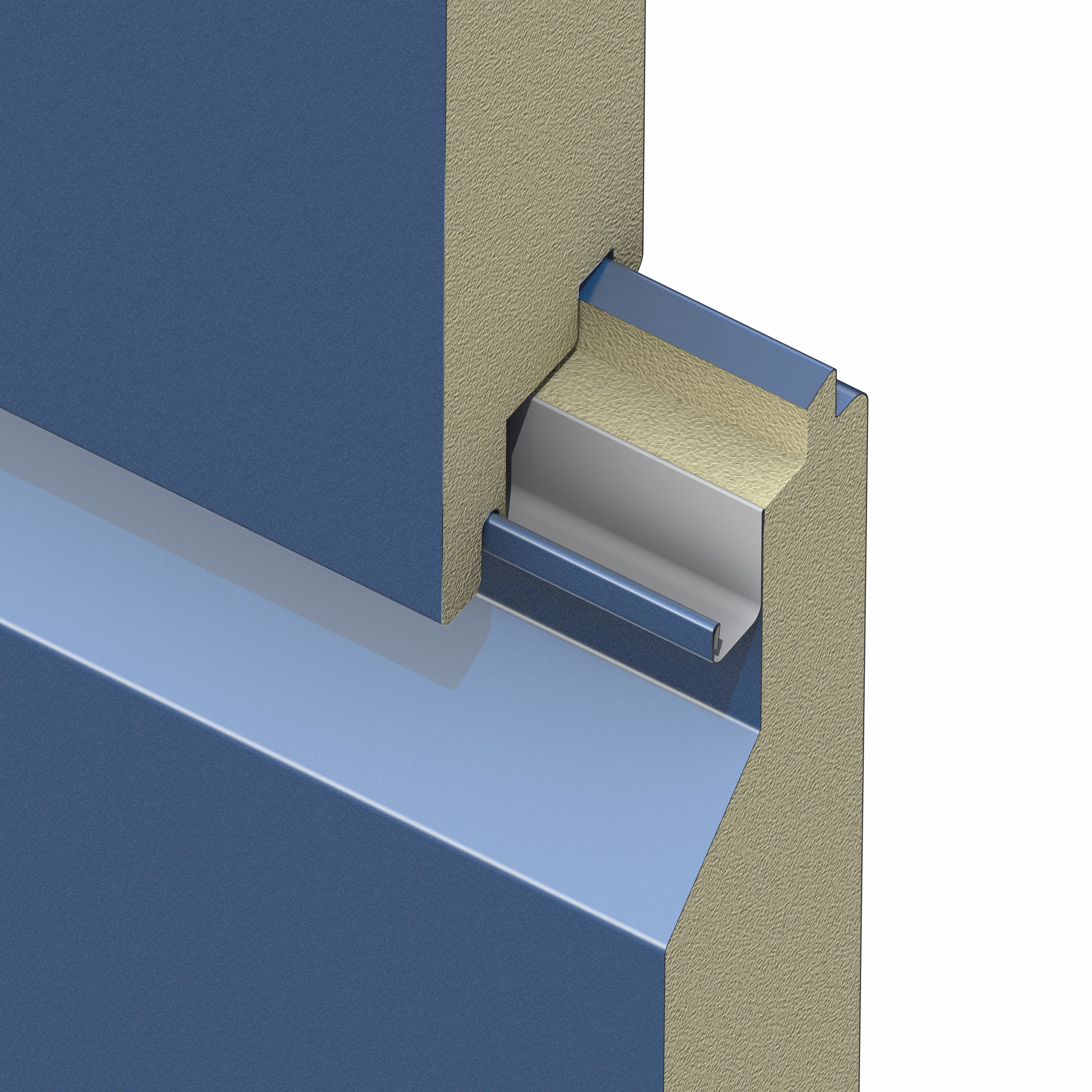

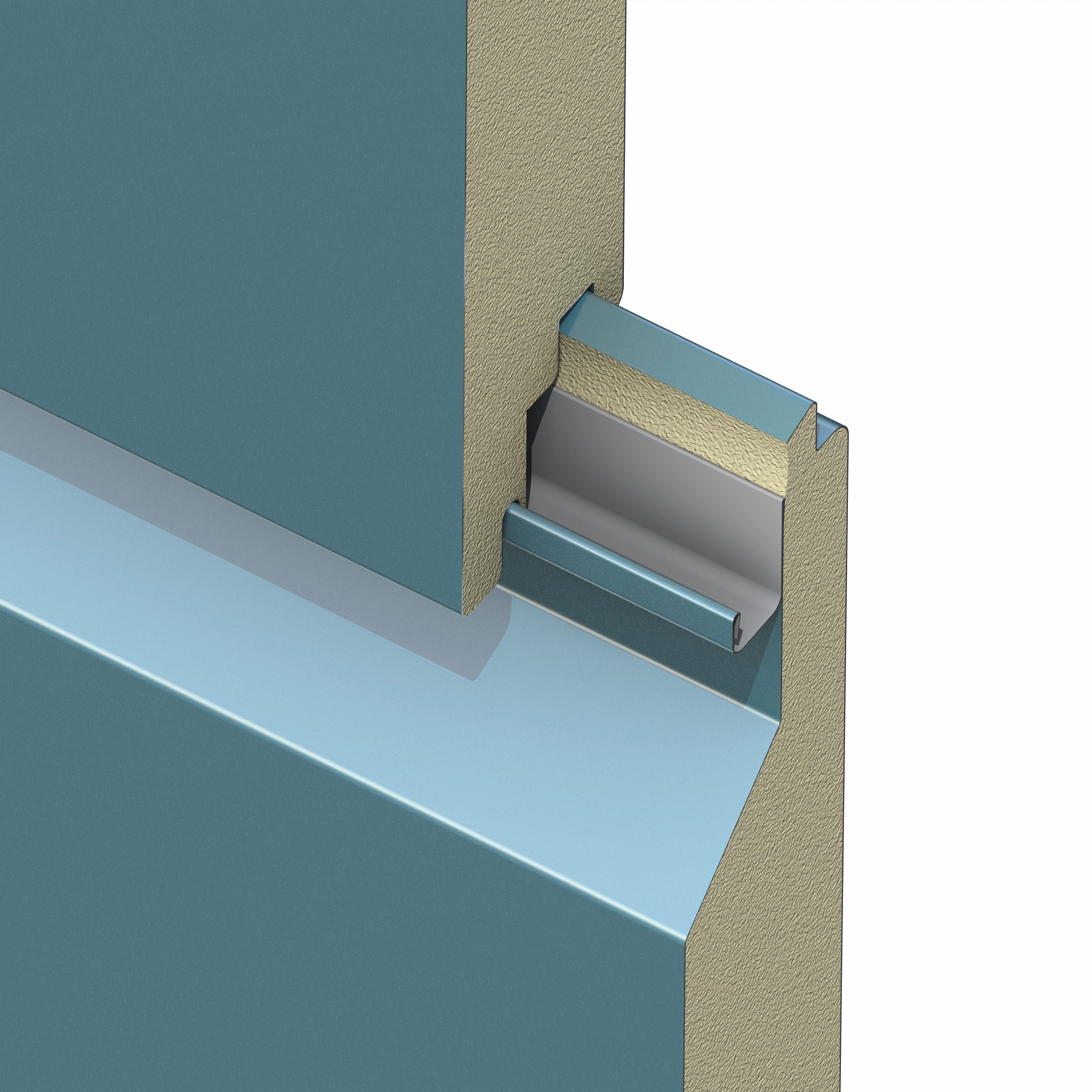

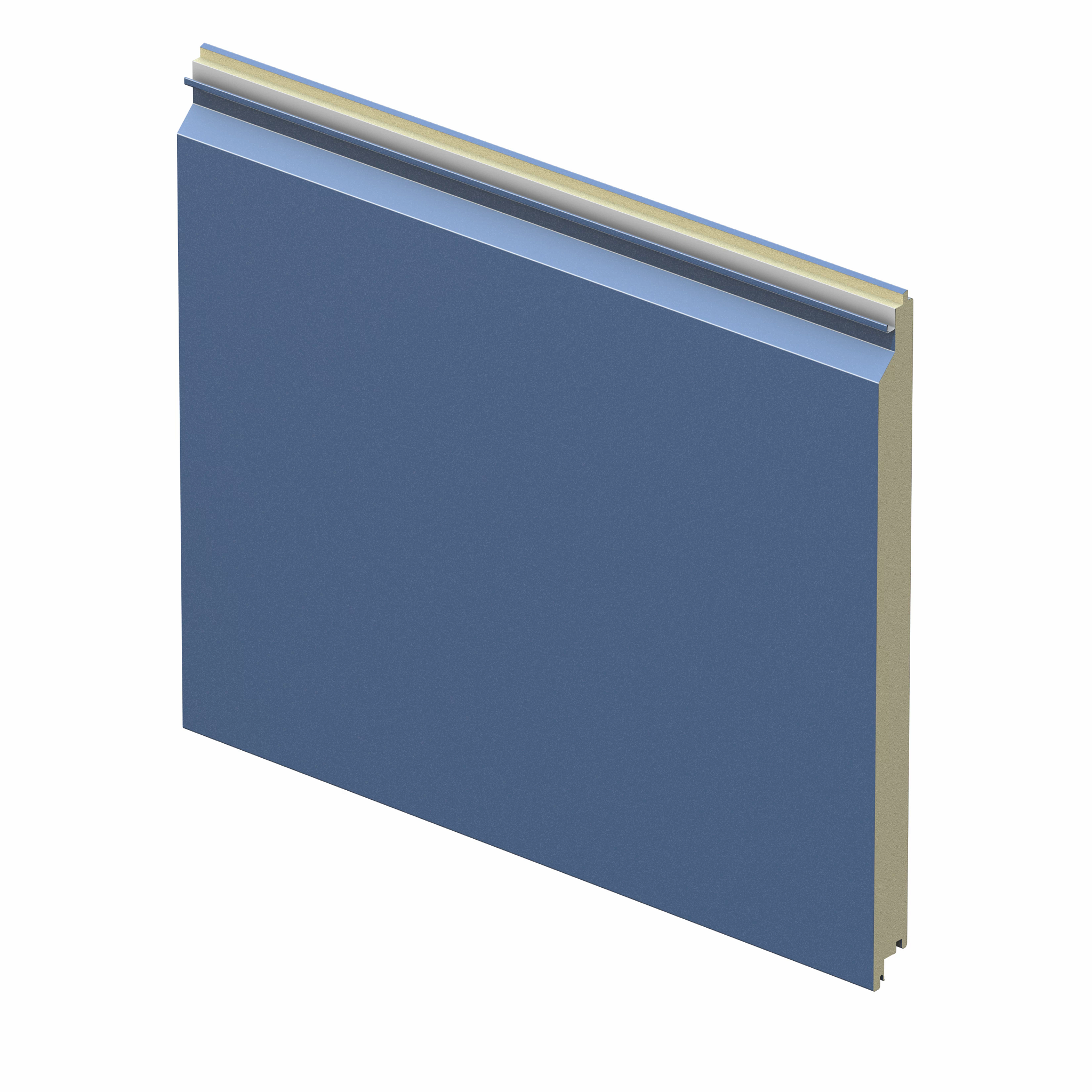

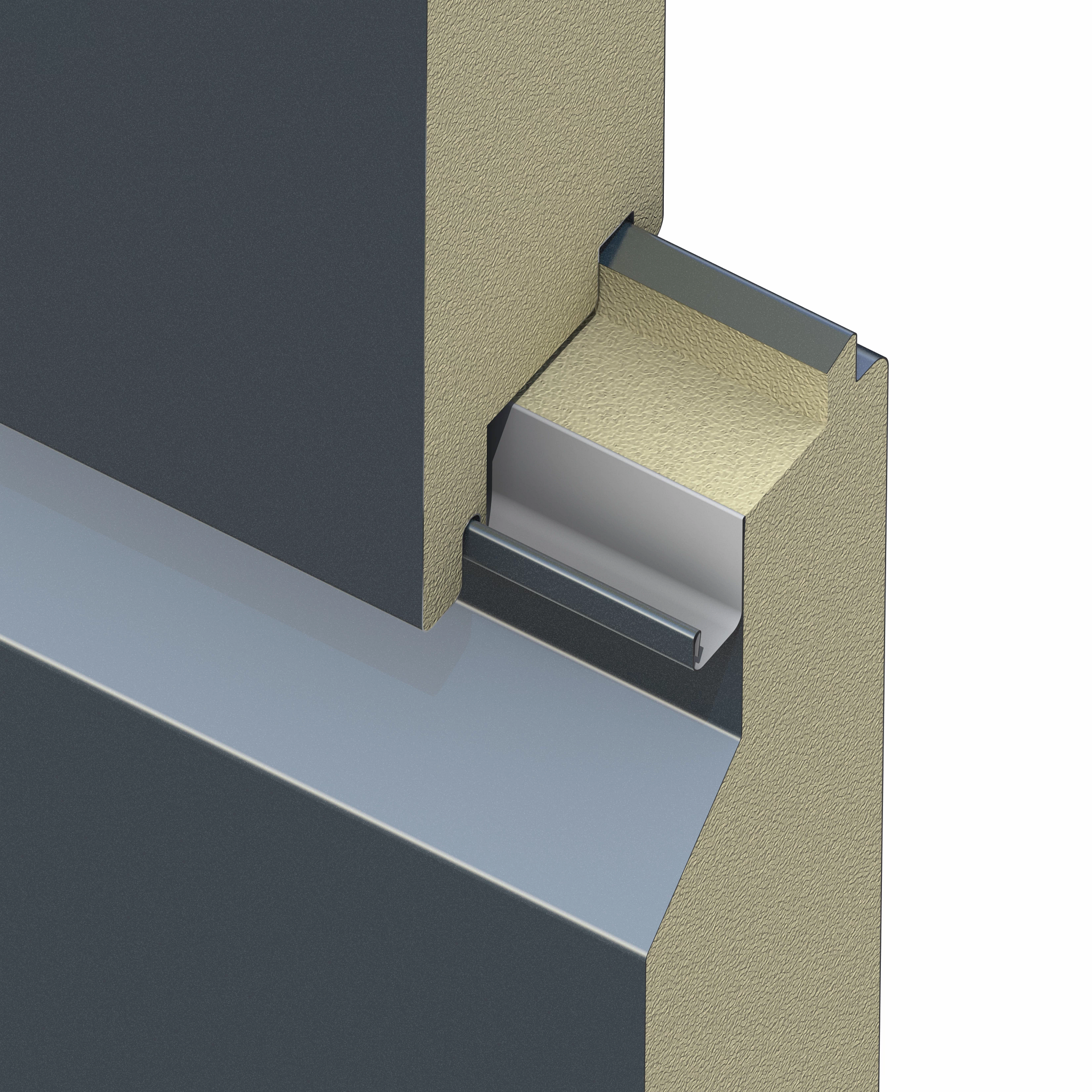

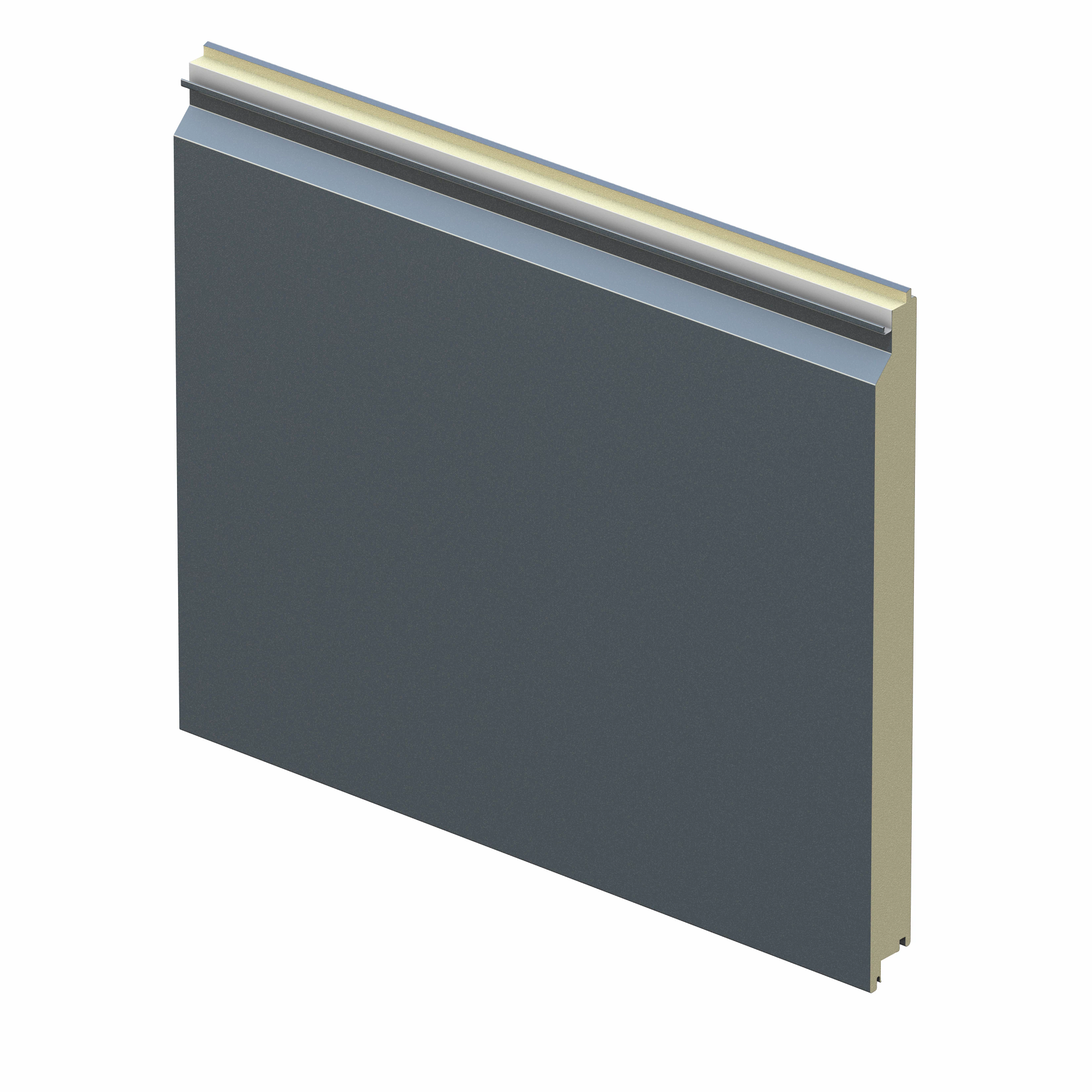

The Formawall Dimension Series DS58 Profile panel is a flat panel with a single steep slope located at the male panel joint. Strategically located Formawall DS58 panels produce an elegant visual break in an otherwise monolithic wall expanse. This option can be integrated with flat or other profiled panels as well as Formavue Windows, CS Sunshades, CS Louvers and translucent panels.

product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
THICKNESS

2″ [51mm]

2.5″ [64mm]

3″-T [76mm]

THERMAL VALUES

R-14.1 (U=0.071)

R-17.7 (U=0.057)

R-21.7 (U=0.046)

PANEL WIDTH

Standard Modules:

24″ [610mm]

30″ [762mm]

36″ [914mm]

Custom Modules:

12″– 40″ [304–1016mm]

PANEL LENGTH

Smooth Flat — 16′ [4.9m] max.

Smooth Striated — 20′ [6.1m] max.

Embossed Striated — 37′ [11.3m] max.

Embossed Flat — 37′ [11.3m] max.
