STANDING SEAM METAL ROOF PANEL SYSTEMS

SDP 200

SIMPLE AND EASY STANDING SEAM ROOF INSTALLATION

Share

Share

SDP 200

AVAILABLE IN NON-DIRECTIONAL PROFILE

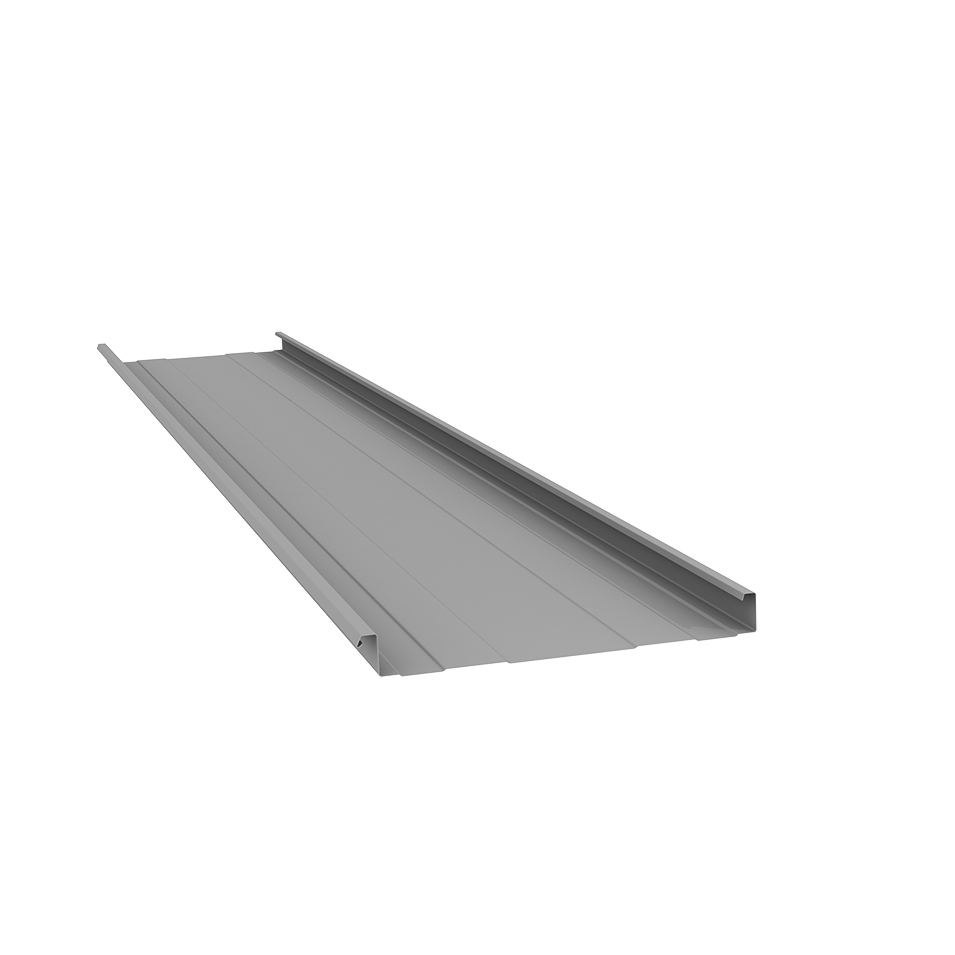

This structural standing seam panel offers superior resistance to wind uplift loads while providing the beauty and long life of a traditional standing seam roof. This Structural Design Panel is a handed, asymmetrical, mechanically seamed panel. The SDP 200 panel features a “hook and rotate” installation procedure. It may be installed directly over open purlins and blanket insulation, steel deck and rigid insulation or plywood substrates. Two-piece floating clips are standard. The two-piece clips interlock in the standing seam to provide a thermal movement capability for panel runs up to 225’-0’. Listed for UL 580 Class 90. Tested according to ASTM E 1592 to meet COE requirements. Factory-applied sealant and tight side seam prevent water entry. Pan of the panel is available striated or with optional planks or pencil beads.

PANEL LENGTH

Standard:

48′ [14.63m] max.

PANEL WIDTH

16″ [406mm]

18″ [457mm]

PANEL HEIGHT

2″ [55mm]

SLOPE

Without Endlaps

1/2:12 [13:305]

With Endlaps

1:12 [25:305]

SUBSTRATES

Galvalume

Galvanized

Galvalume Plus
