STANDING SEAM METAL ROOF PANEL SYSTEMS

SDP 175

SIMPLE AND EASY STANDING SEAM ROOF INSTALLATION

Share

Share

SDP 175

AVAILABLE IN NON-DIRECTIONAL PROFILE

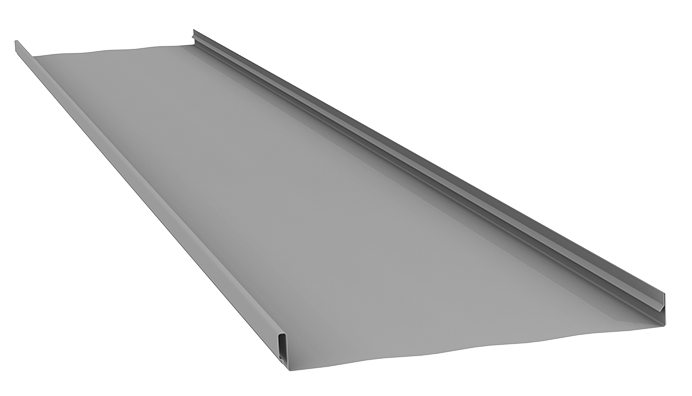

SDP 175 is a structural standing seam panel. The panel has a 1-3/4” high seam that snaps together over concealed clips. Recommended slopes are 3” : 12” and greater. It may be installed over open purlins, on plywood deck, or on rigid foam insulation over steel deck. Snap-together seam reduces installation time and cost. Standing seam appearance for architectural applications. Does not require special crimper and seamer tools. The SDP-175 panel is available in (3) three pan profiles: Striated, Pencil Bead and Planked.

product image
product image
product image
product image
PANEL LENGTH

Standard:

40′ [12.19m] max.

PANEL WIDTH

16″ [406mm]

18″ [457mm]

PANEL HEIGHT

1-3/4″ [44mm]

SLOPE

3:12 [76:305] min.

SUBSTRATES

Galvalume

Galvanized

Galvalume Plus
