COMPOSITE BACKUP WALL INSULATED METAL PANELS

METALWRAP™ INTEGRATED SERIES

THE ULTIMATE BARRIER WALL SYSTEM

Share

Share

METALWRAP MR-300

AVAILABLE IN HORIZONTAL PROFILE

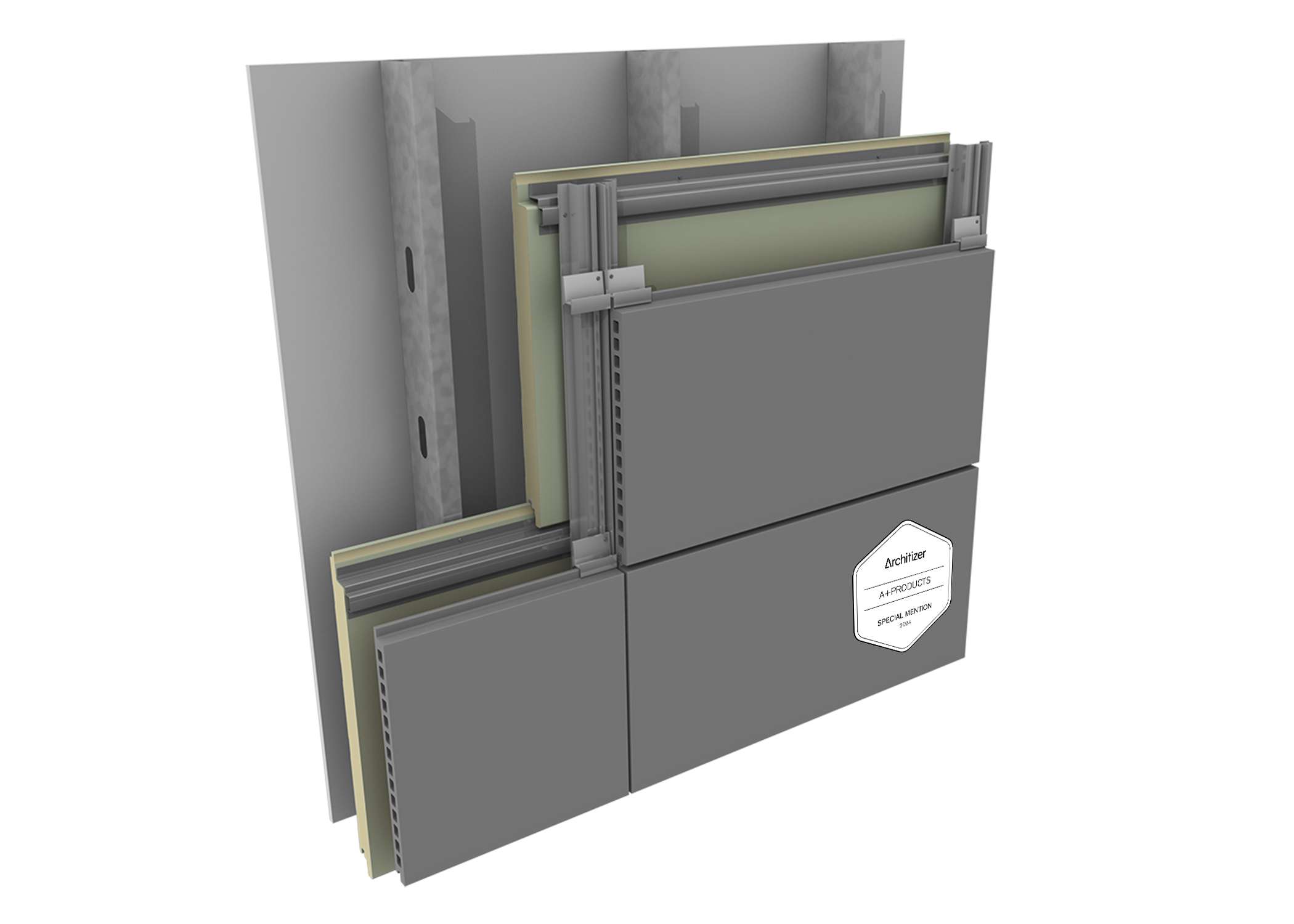

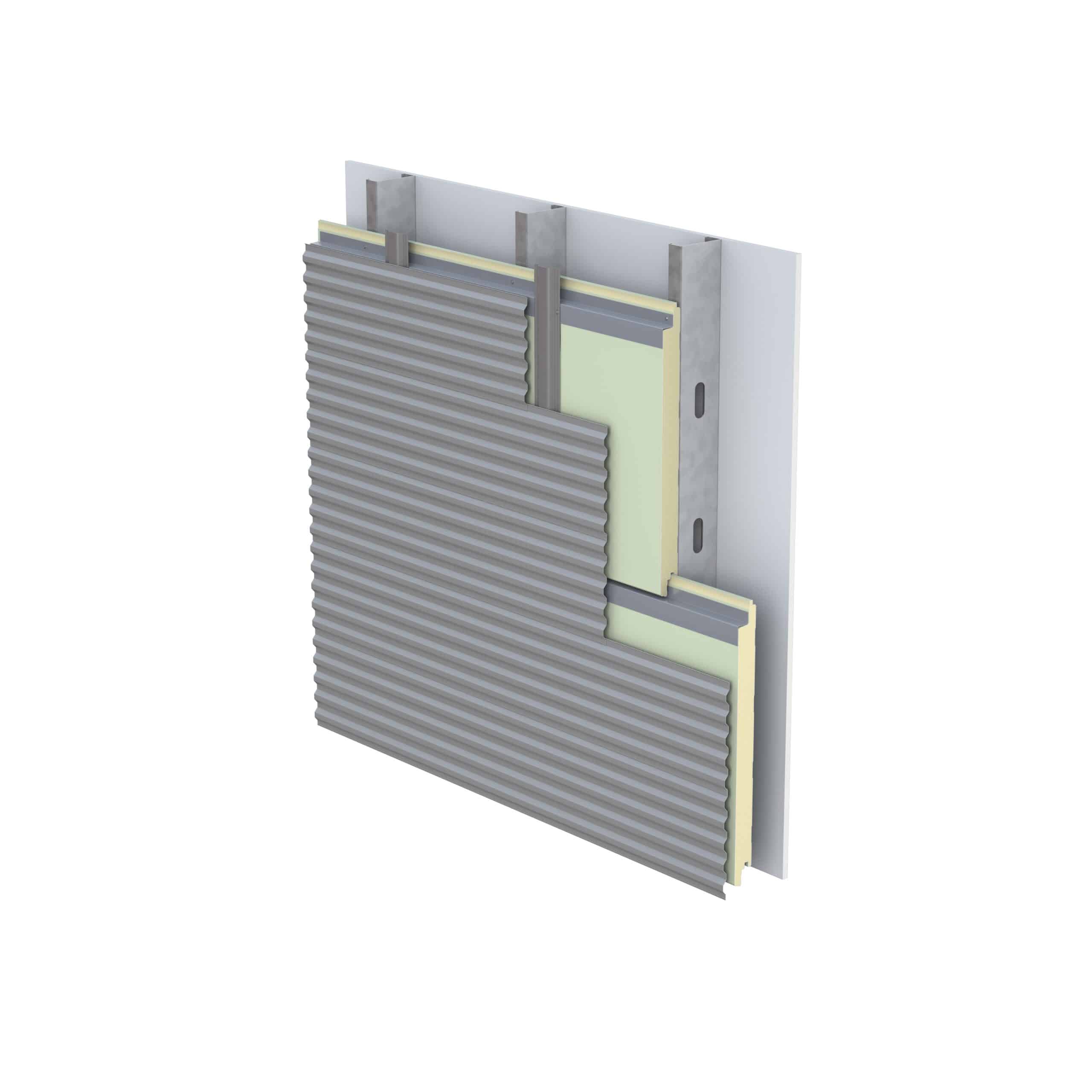

MetalWrap is an insulated composite backup panel system that consists of two steel skins, permanently bonded to a poured-in-place foam insulating core. The panel provides thermal, air, water, and vapor barriers in a composite assembly. The MR-300 attachment system offers enhanced flexibility, faster installation, and superior thermal performance throughout the joint. The system integrates with the panel joinery, is continuous along the panel length and is designed to work with different exterior rainscreen materials. The attachment system comes pre-punched from the factory, simplifying installation and facilitating the placement of vertical sub-framing. It is recommended for use with 18-gauge steel studs.

SYSTEMS SELECTION GUIDE

<h3>System Selection Guide</h3>

Rainscreen

MR-100

MR-300

Brick Ties

Panel Clips

Horizontal Profile Panels X* X* X*
Vertical Profile Panels X X X*
Brick X
Terra Cotta X* X*
ACM Panels X* X* X*
Honeycomb Panels X* X*
Stucco X*
Stone Panels X*
Fabric Panels X*
C/S Louvers X
*Additional subgirts are required

JOINERY

Side Joint: Pressure-Equalized

THERMAL VALUES

2″ – R-16.7 (U=0.063)

3″ – R-25.1 (U=0.042)

PANEL WIDTH

32″ [813mm]

36″ [914mm]

PANEL LENGTH

12′ [3.7m]

20′ [6.1m]

CORE MATERIAL

Foamed-in-place Polyisocyanurate (PIR)

PRODUCT DOWNLOADS

LOADING…

LOADING…

LOADING…

LOADING…

LOADING…

HAVE A QUESTION OR NEED MORE INFORMATION?

CONTACT SALES REP

QUICK TURN PROGRAM OFFERING

CENTRIA offers a quick turn program for MetalWrap Integrated Series product.

Program Requirements:

  • Only 32” or 36” module
  • Only 2” or 3” thickness
  • 5-30’ lengths
  • 29 Ga. Galvalume Prime
  • Smooth Flat Exterior
  •  Smooth Planked Interior
  • Heavier gauges may be provided using any available PUP coil
  • Small quality manufacturing setup will apply
  • Standalone orders in quantities of 10,000 square feet and under

Program offers a 2-week lead time
