COMPOSITE BACKUP WALL INSULATED METAL PANELS

METALWRAP™ INTEGRATED SERIES

THE ULTIMATE BARRIER WALL SYSTEM

Share

Share

METALWRAP MASONRY

AVAILABLE IN HORIZONTAL PROFILE

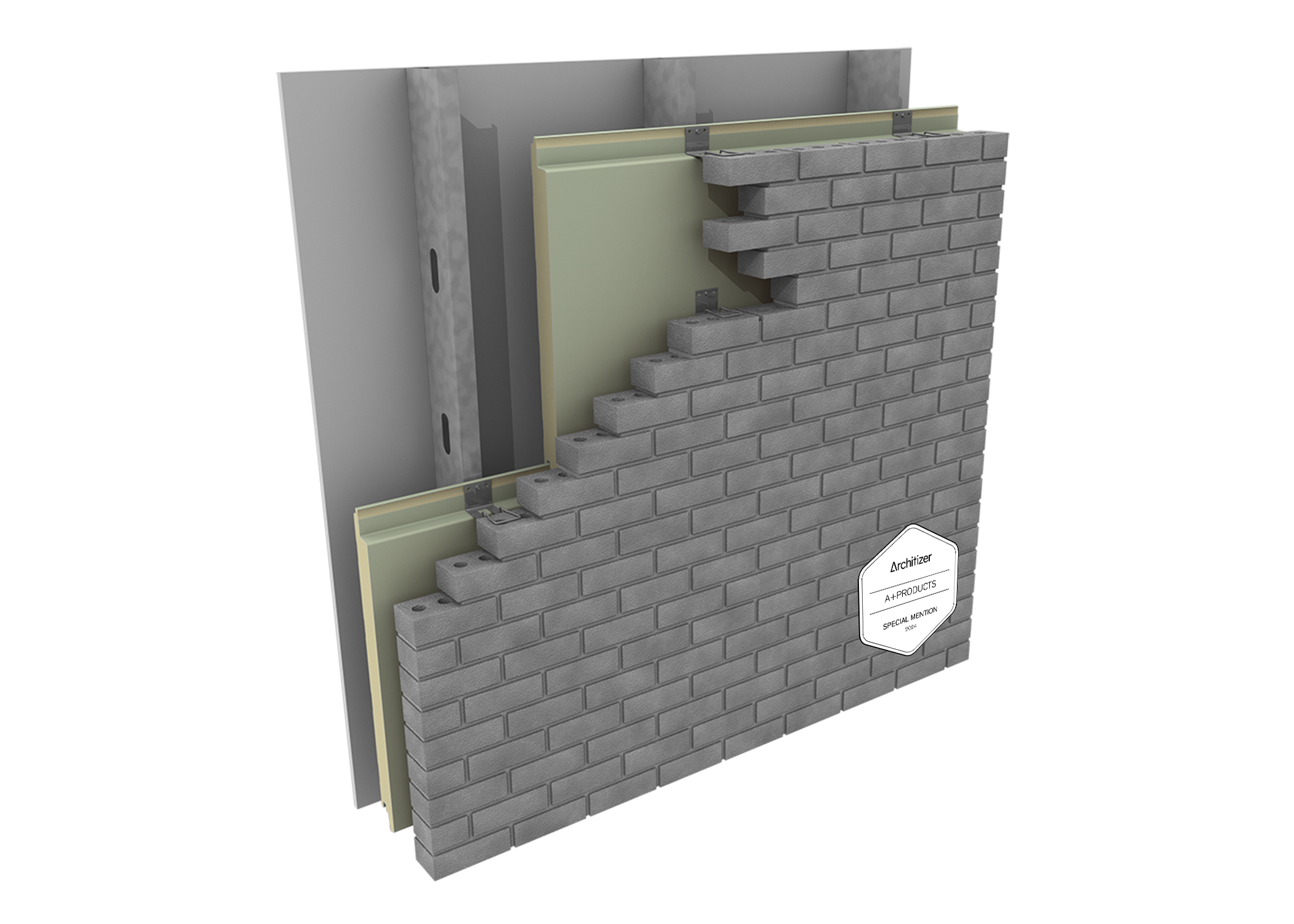

MetalWrap is an insulated composite backup panel system that consists of two steel skins, permanently bonded to a poured-in-place foam insulating core. Custom integrated panel clips into the panel joint and face clips provide the required attachment points for a masonry exterior. It is recommended for use with 18-gauge steel studs.



product image
product image
product image
product image
product image
product image
product image
product image
product image
product image
JOINERY

Side Joint: Pressure-Equalized

THERMAL VALUES

2″ – R-16.7 (U=0.063)

3″ – R-25.1 (U=0.042)

PANEL WIDTH

32″ [813mm]

36″ [914mm]

PANEL LENGTH

12′ [3.7m]

20′ [6.1m]

CORE MATERIAL

Foamed-in-place Polyisocyanurate (PIR)

PRODUCT DOWNLOADS

LOADING…

LOADING…

LOADING…

LOADING…

LOADING…

HAVE A QUESTION OR NEED MORE INFORMATION?

CONTACT SALES REP

QUICK TURN PROGRAM OFFERING

CENTRIA offers a quick turn program for MetalWrap Integrated Series product.



Program Requirements:

  • Only 32” or 36” module
  • Only 2” or 3” thickness
  • 5-30’ lengths
  • 29 Ga. Galvalume Prime
  • Smooth Flat Exterior
  •  Smooth Planked Interior
  • Heavier gauges may be provided using any available PUP coil
  • Small quality manufacturing setup will apply
  • Standalone orders in quantities of 10,000 square feet and under



Program offers a 2-week lead time

Contact a Sales Representative to help you with a quote today!
