ECOSCREEN PERFORATED SCREENWALL

ECOSCREEN: MR3-36

CONTROL LIGHT AND AIR WITH PERFORATED PANELS

Share

Share

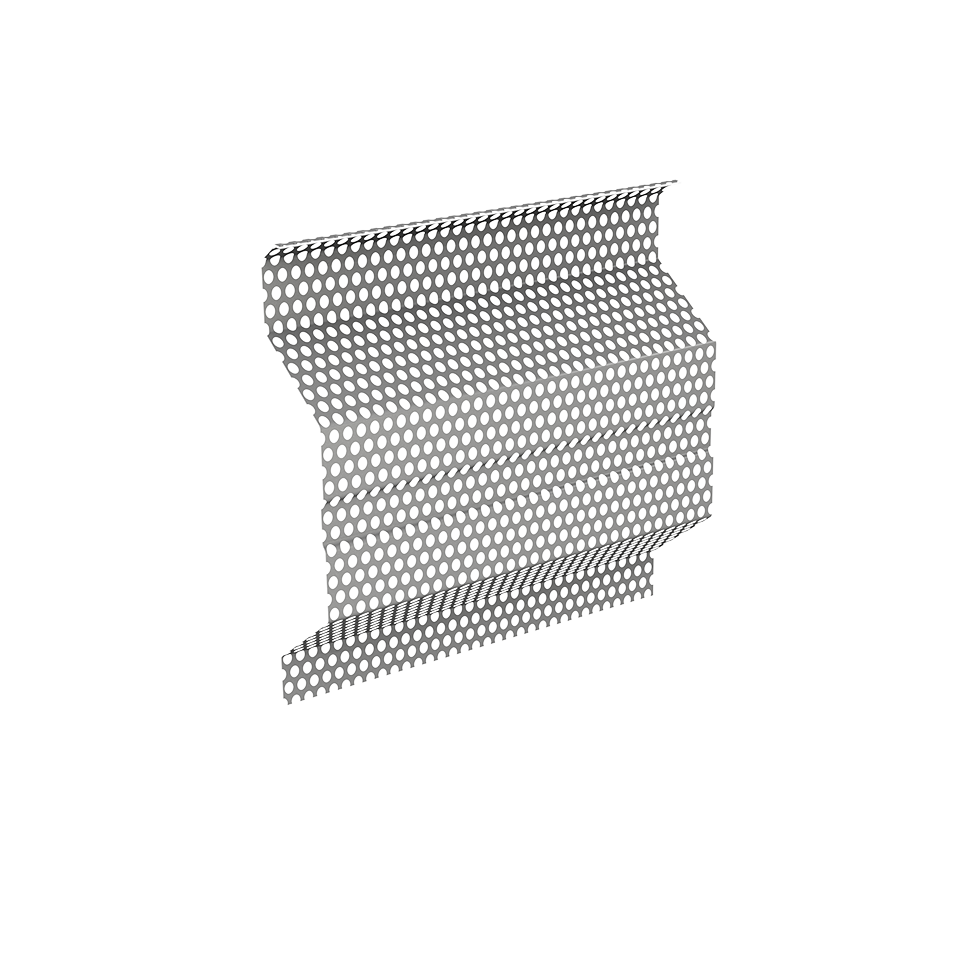

ECOSCREEN: MR3-36

AVAILABLE IN HORIZONTAL AND VERTICAL PROFILE

The 3” [76 mm] depth MR3-36 has three evenly spaced ribs with available staggered or reversed perforation patterns. EcoScreen MR3-36 is the perfect selection of screening material to control light, provide air movement or secure and conceal operational equipment. All EcoScreen panels are exposed fastener and can be installed in vertical or horizontal applications. EcoScreen panels are available in 2B finished stainless steel or in CENTRIA’s painted finishes on aluminum.

PANEL LENGTH

Stainless Steel:

5′ [1.524m] – 30′ [9.144m]

Aluminum:

5′ [1.524m] – 20′ [6.096m]

20’ [6.10m] max for aluminum

PANEL WIDTH

36” [914mm]

PANEL DEPTH

3” [76mm]

PERFORATION PATTERN

Staggered

Reverse

SUBSTRATES

20 gauge Stainless Steel

0.040″ [1] painted Aluminum
