ECOSCREEN PERFORATED SCREENWALL

ECOSCREEN: CS-260

CONTROL LIGHT AND AIR WITH PERFORATED PANELS

Share

Share

ECOSCREEN: CS-260

AVAILABLE IN HORIZONTAL AND VERTICAL PROFILE

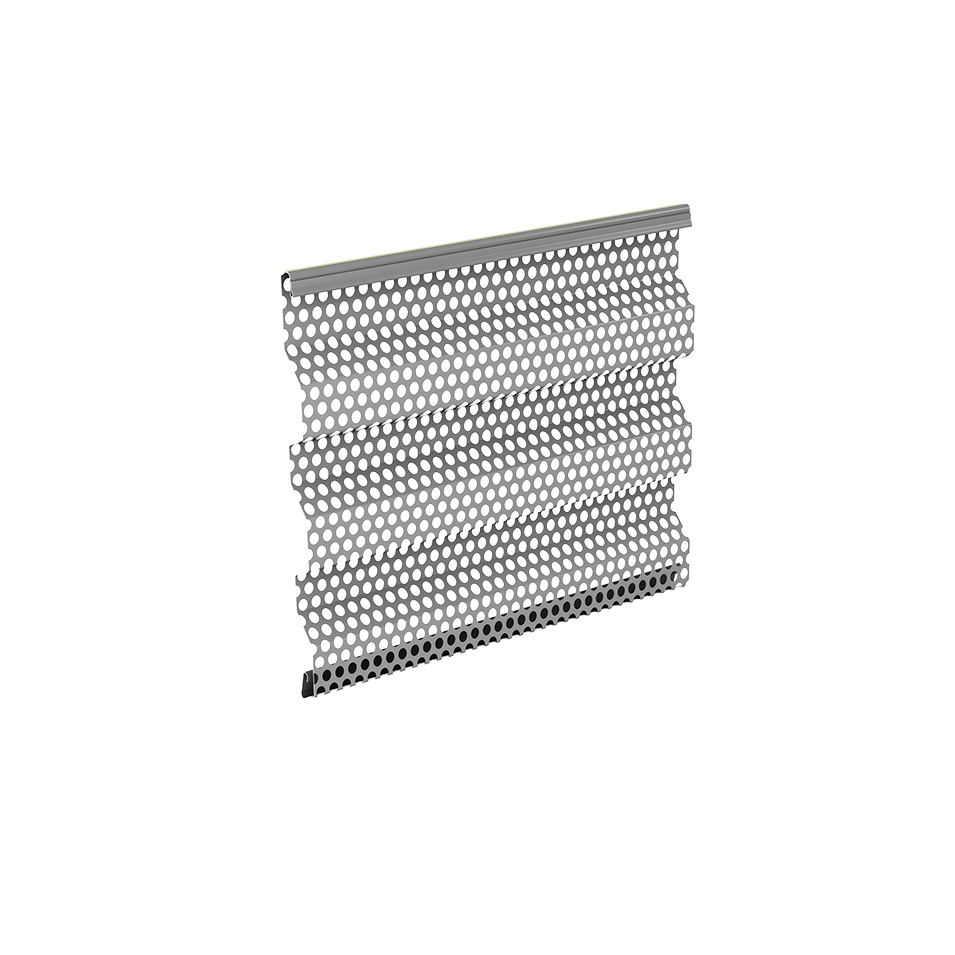

Concept CS-260 interchangeable single-skin metal panels have 12” [305mm] wide coverage, 7/8” [22mm] deep profiled panels featuring three asymmetrical ribs with available staggered or reversed perforation pattern.  EcoScreen CS-260 is the perfect selection of screening material to control light, provide air movement or secure and conceal operational equipment. All EcoScreen panels are exposed fastener and can be installed in vertical or horizontal applications. EcoScreen panels are available in 2B finished stainless steel or in CENTRIA’s painted finishes on aluminum.

product image
product image
product image
product image
product image
product image
product image
product image
PANEL LENGTH

Stainless Steel:

5′ [1.524m] – 30′ [9.144m]

Aluminum:

5′ [1.524m] – 20′ [6.096m]

20’ [6.10m] max for aluminum

PANEL WIDTH

12” [305mm]

PANEL DEPTH

7/8” [22mm]

PERFORATION PATTERN

Staggered

Reverse

SUBSTRATES

20 gauge Stainless Steel

0.040″ [1] painted Aluminum

0.039″ [1] Zinc
