EXPOSED FASTENER WALL PANELS

SUPER-RIB

VERSATILITY AND FLEXIBILITY FOR YOUR RAINSCREEN PROJECT

Share

Share

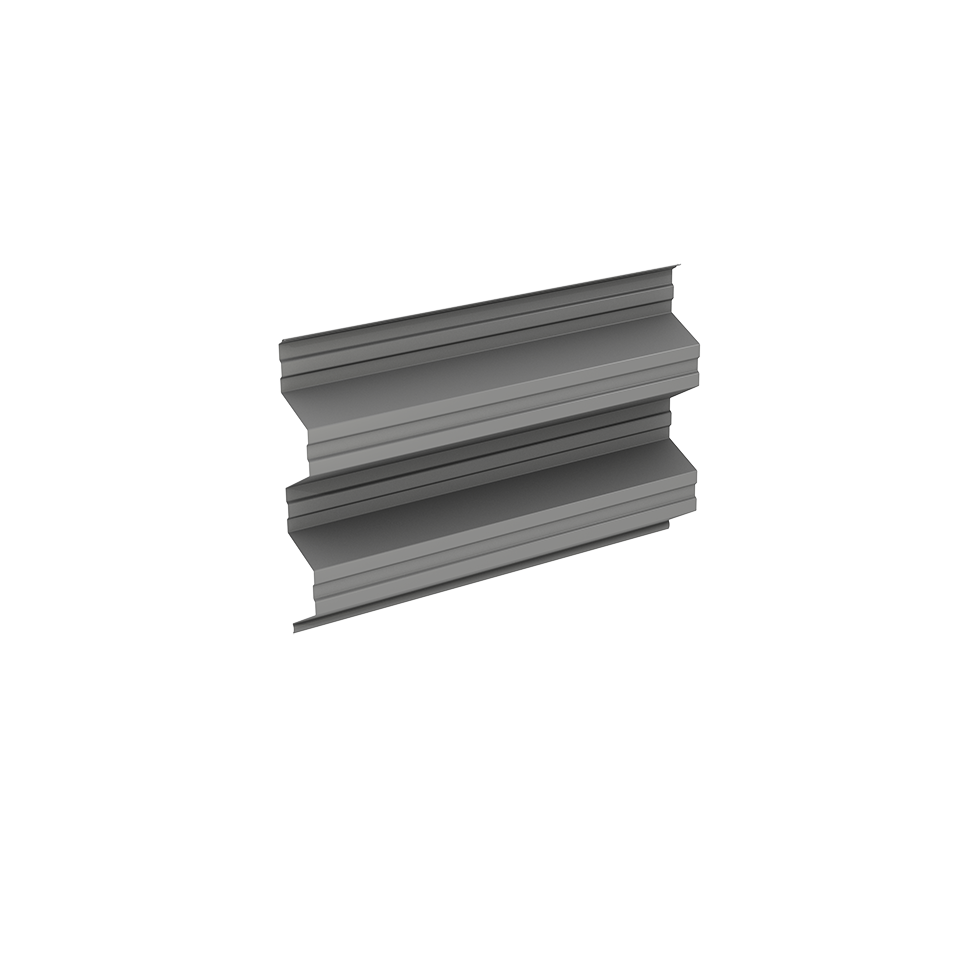

SUPER-RIB

AVAILABLE IN HORIZONTAL AND VERTICAL PROFILE

Super-Rib is our strongest panel which allows for longer spans and a reduction in the number of supports. As a wall panel, Super-Rib side laps in the low cell. As a roof panel, Super-Rib is inverted so that the side lap occurs in the high cell. All Exposed Fastener wall panels may be installed in a variety of rainscreen applications to form a complete wall system. Systems may vary from an uninsulated screenwall to MetalWrap® Series, an insulated composite backup panel system with Advanced Thermal and Moisture Protection (ATMP®). Refer to CENTRIA Technical bulletin TB-05-10 for all rainscreen applications.

product image
product image
product image
view of curved wall with blue panels and glass bump-out
product image
product image
product image
product image
view of curved wall with blue panels and glass bump-out
product image
PANEL LENGTH

Standard:

5′ [1.52m] – 40′ [12.19m]

20’ [6.10m] max for aluminum

PANEL WIDTH

24” [610mm]

PANEL DEPTH

4” [102mm]

SURFACE FINISH

Standard: Smooth

Optional: Embossed

SUBSTRATES

Standard:

22 – 18 gauge G-90 Galvanized Steel

Optional:

Aluminum
