METALWRAP™ LONG SPAN SERIES

AVAILABLE IN VERTICAL PROFILE

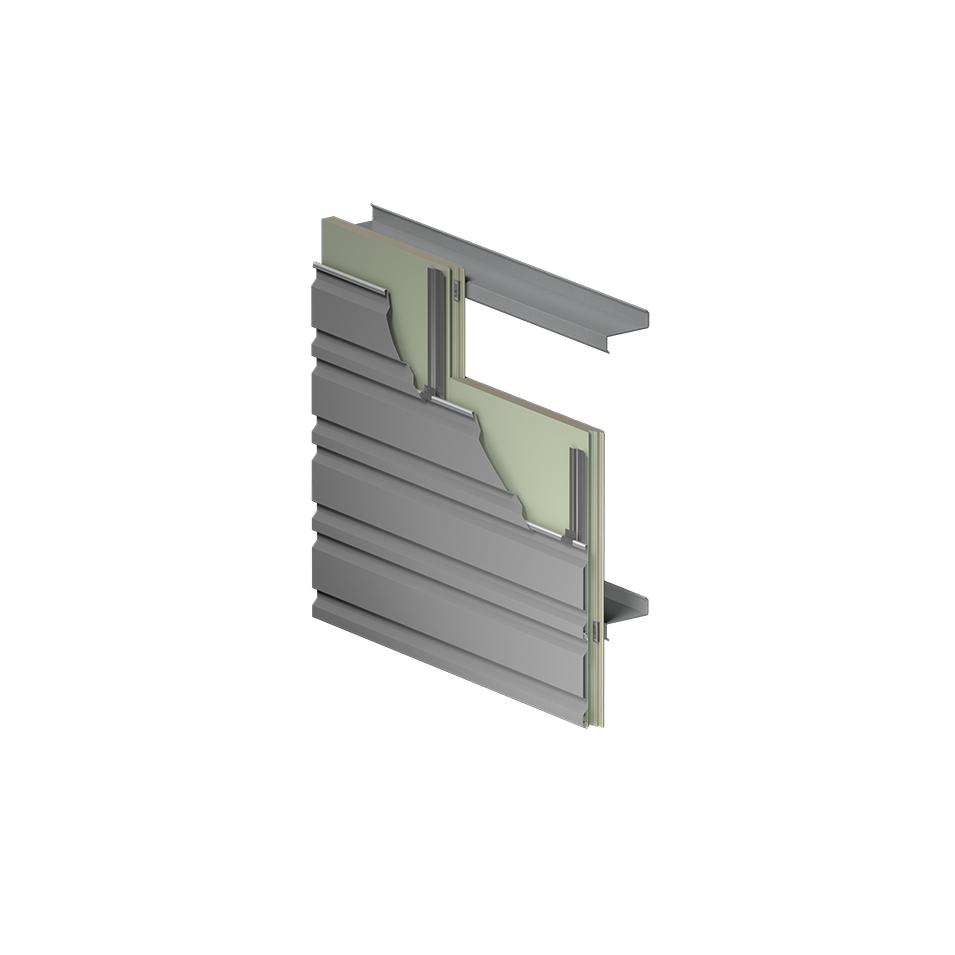

CENTRIA MetalWrap™ Insulated Composite Backup Panel System is designed to be used with CENTRIA metal wall panel cladding to create a complete rainscreen system solution. In addition, MetalWrap is designed to work with a variety of other cladding materials as the backup system making it an excellent solution when multiple cladding materials are used on a project. The unique composite design of MetalWrap provides an air barrier, vapor barrier, moisture barrier, and thermally efficient building product with total wall values that exceed code requirements in a single, easy-to install component. MetalWrap is a foam composite panel constructed of two roll formed steel faces surrounding and entirely bonded to a closed cell poured-in-place polyisocyanurate foam core. The exterior steel face is compositely bonded to the interior steel face but is otherwise isolated from contact to improve the panel’s thermal properties. The MetalWrap Long Span Series provides flexible options when attaching direct to steel girts up to 6’ o.c.

JOINERY

Side Joint: Double Tongue-and-Groove

THERMAL VALUES

2″ – R-16.7 (U=0.063)

2.75″ – R-23.0 (U=0.046)

4″ – R-33.5 (U=0.034)

PANEL WIDTH

30″ [762mm]

36″ [914mm]

PANEL LENGTH

12′ [3.7m]

20′ [6.1m]

CORE MATERIAL

Poured-in-place Polyisocyanurate
