FORMAVUE WINDOWS™

FV-400

FULLY INTEGRATED. ULTIMATE PERFORMANCE.

Share

Share

FV-400A, FV-400S

AVAILABLE IN HORIZONTAL AND VERTICAL PROFILES

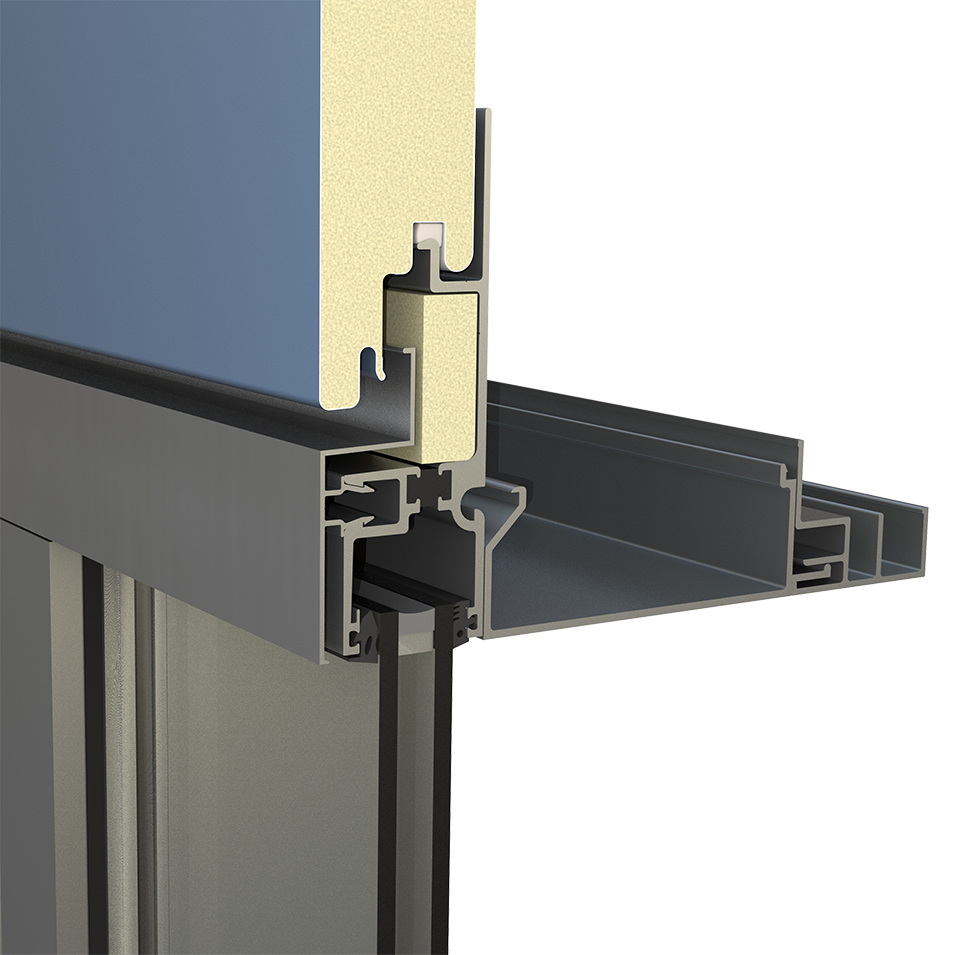

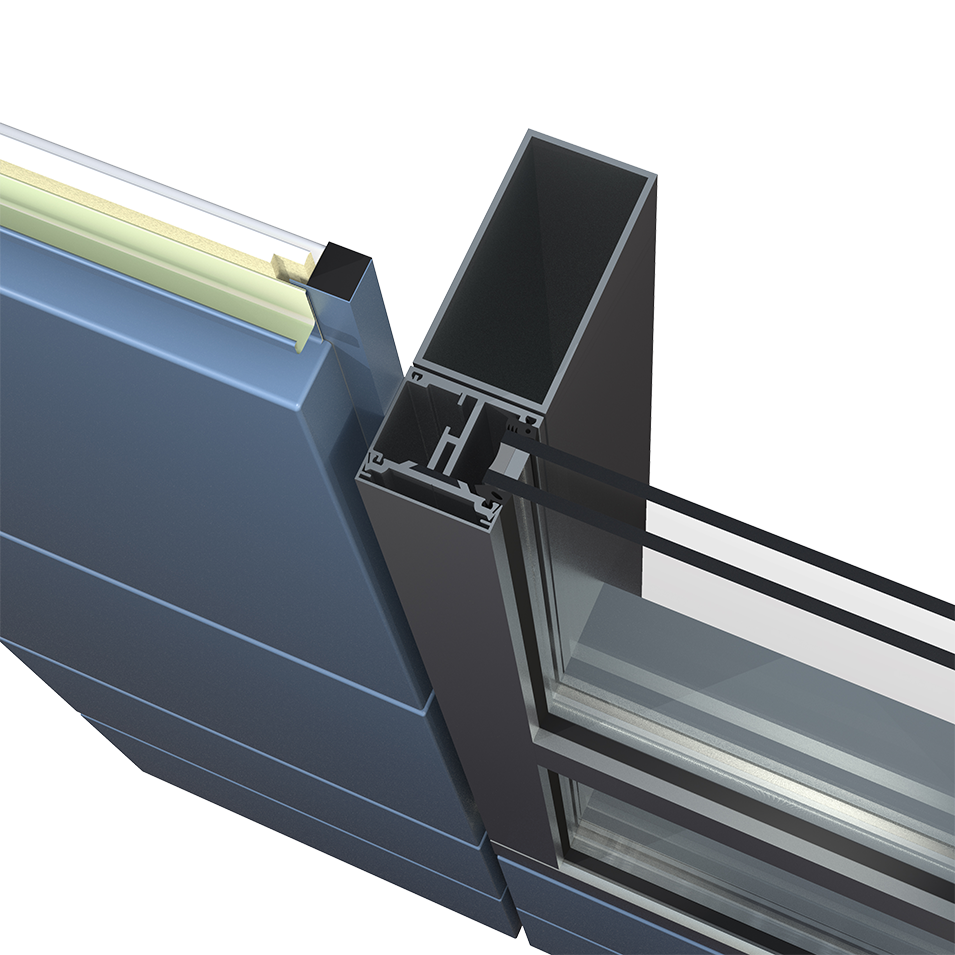

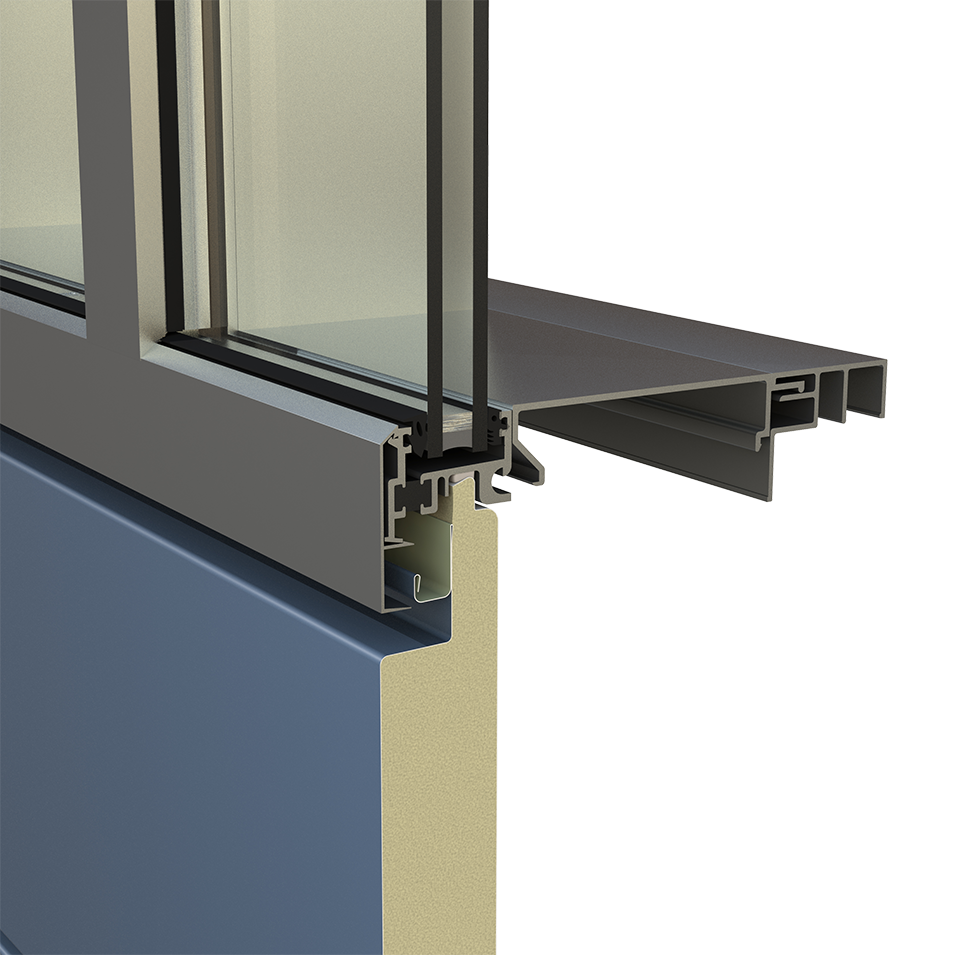

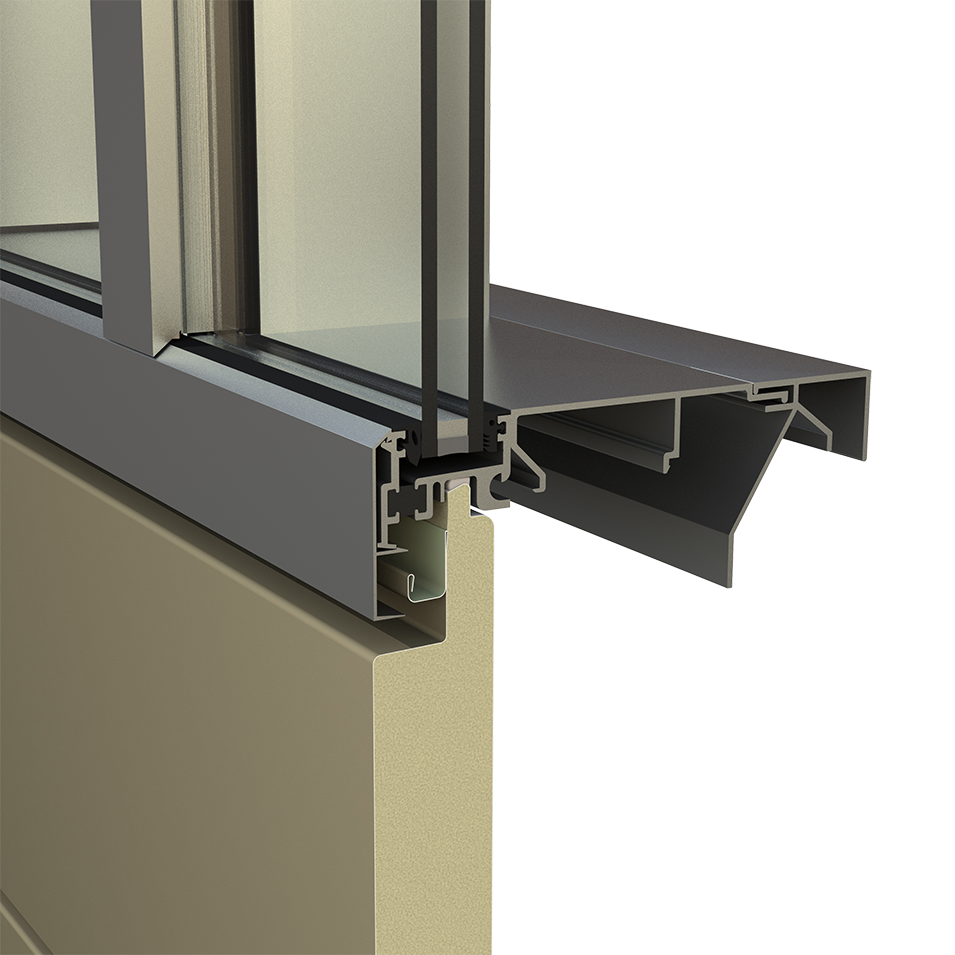

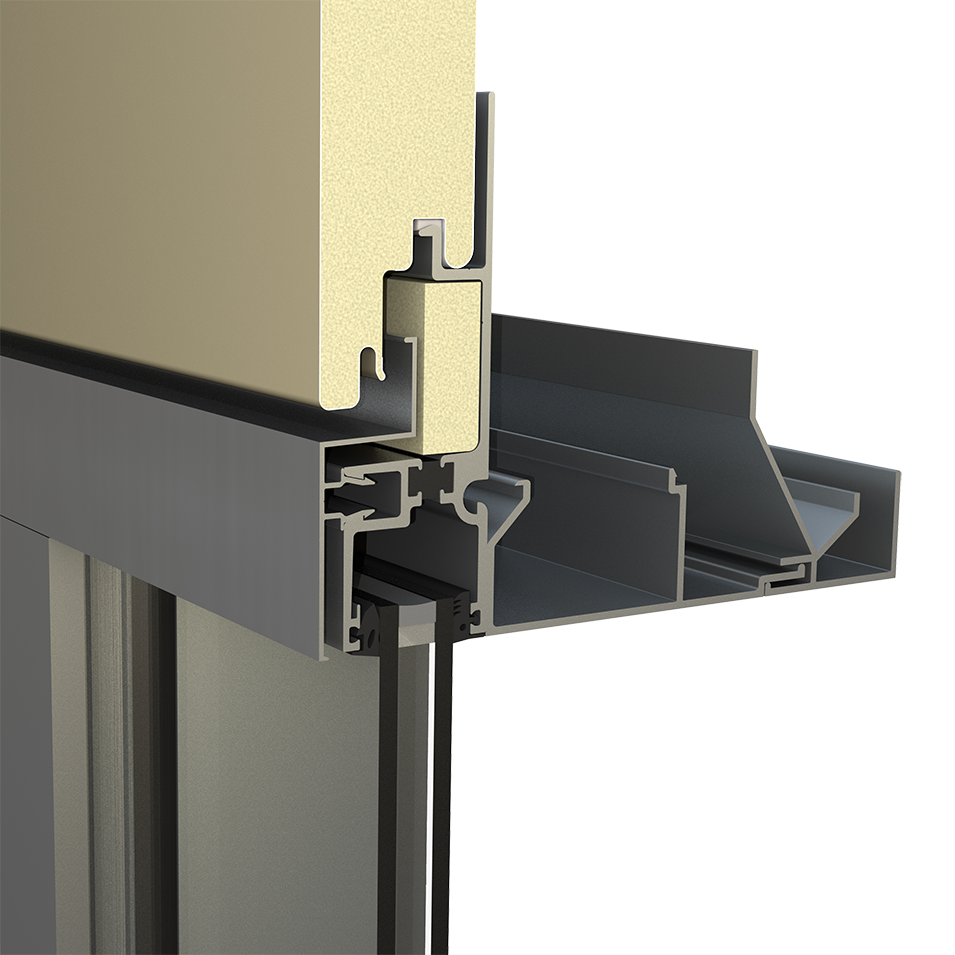

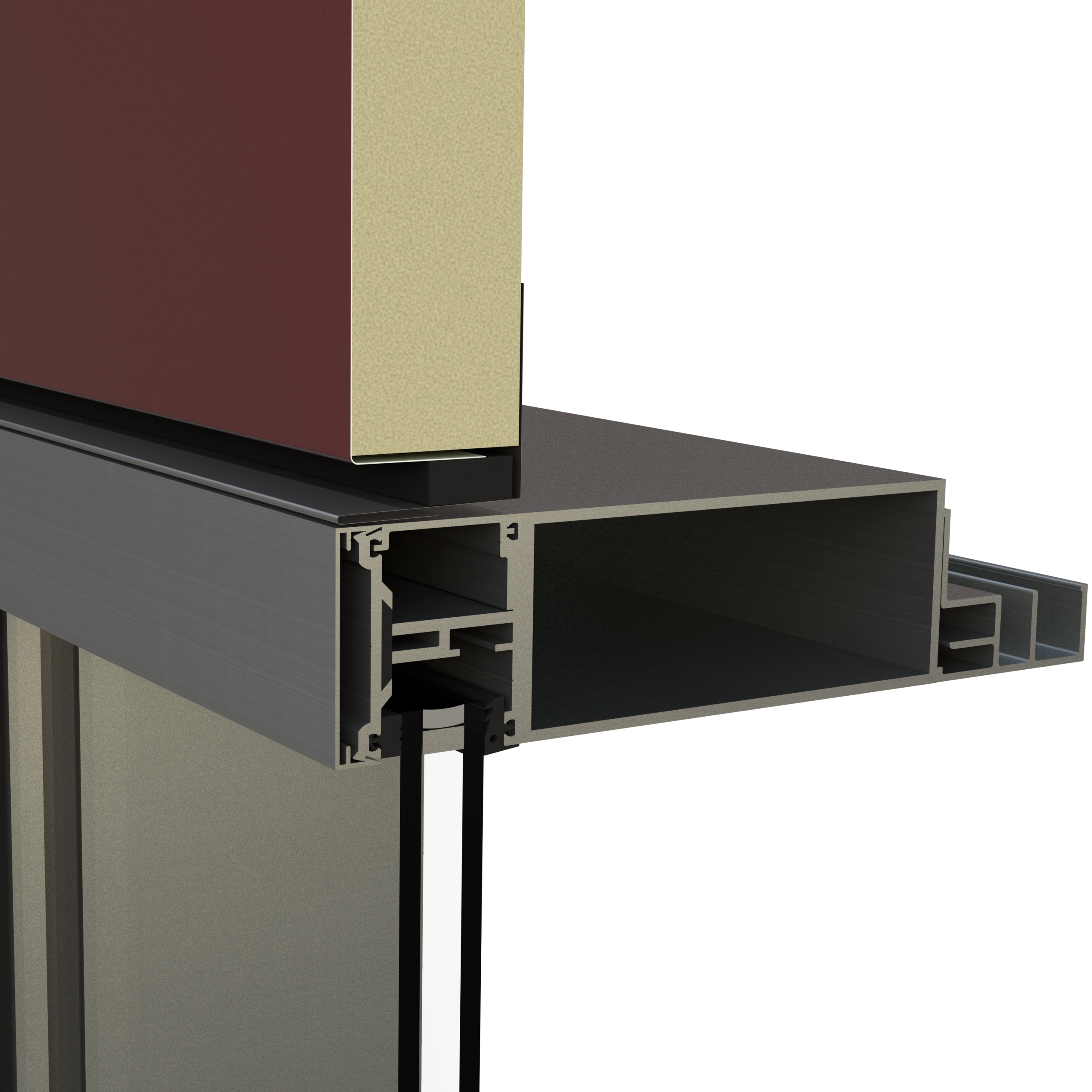

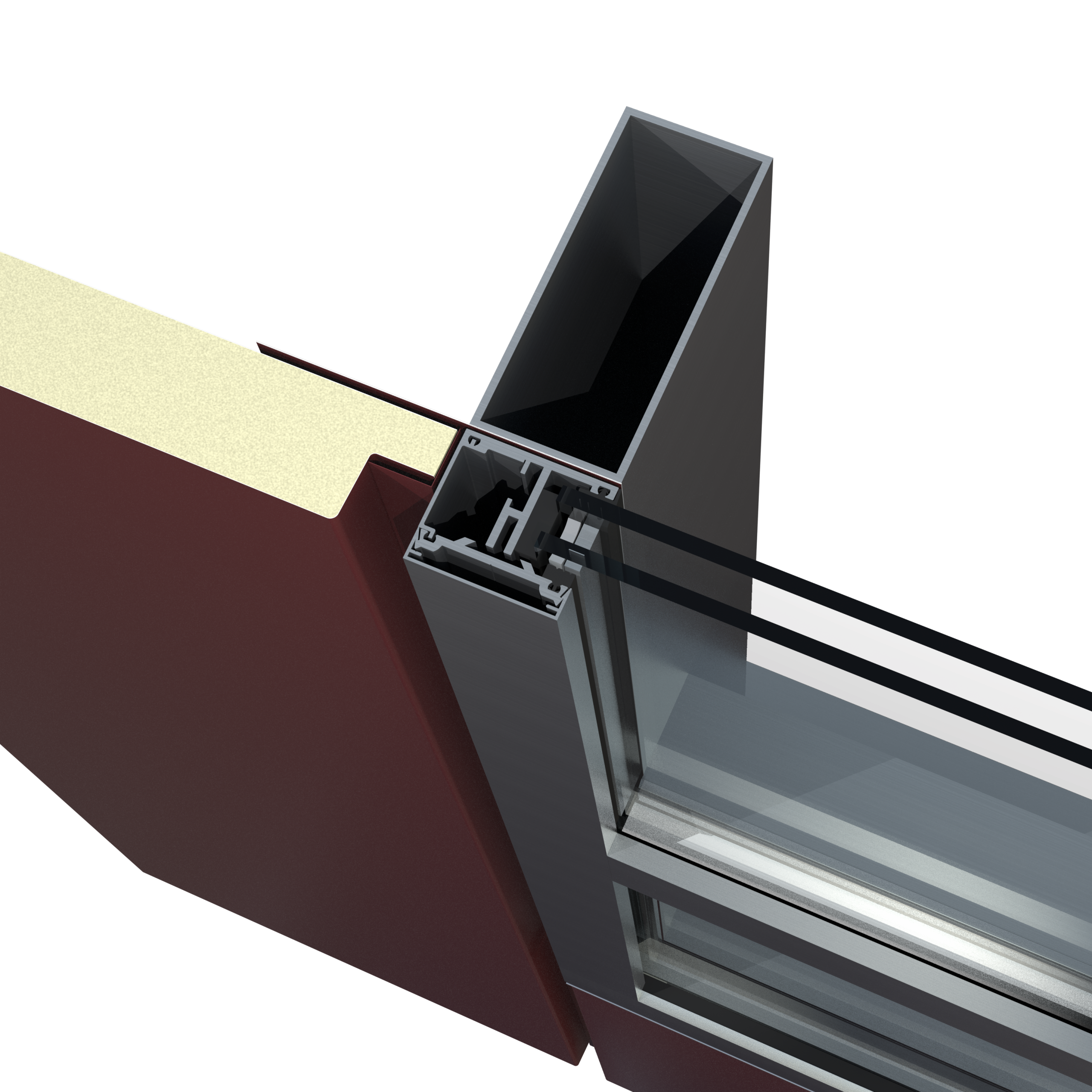

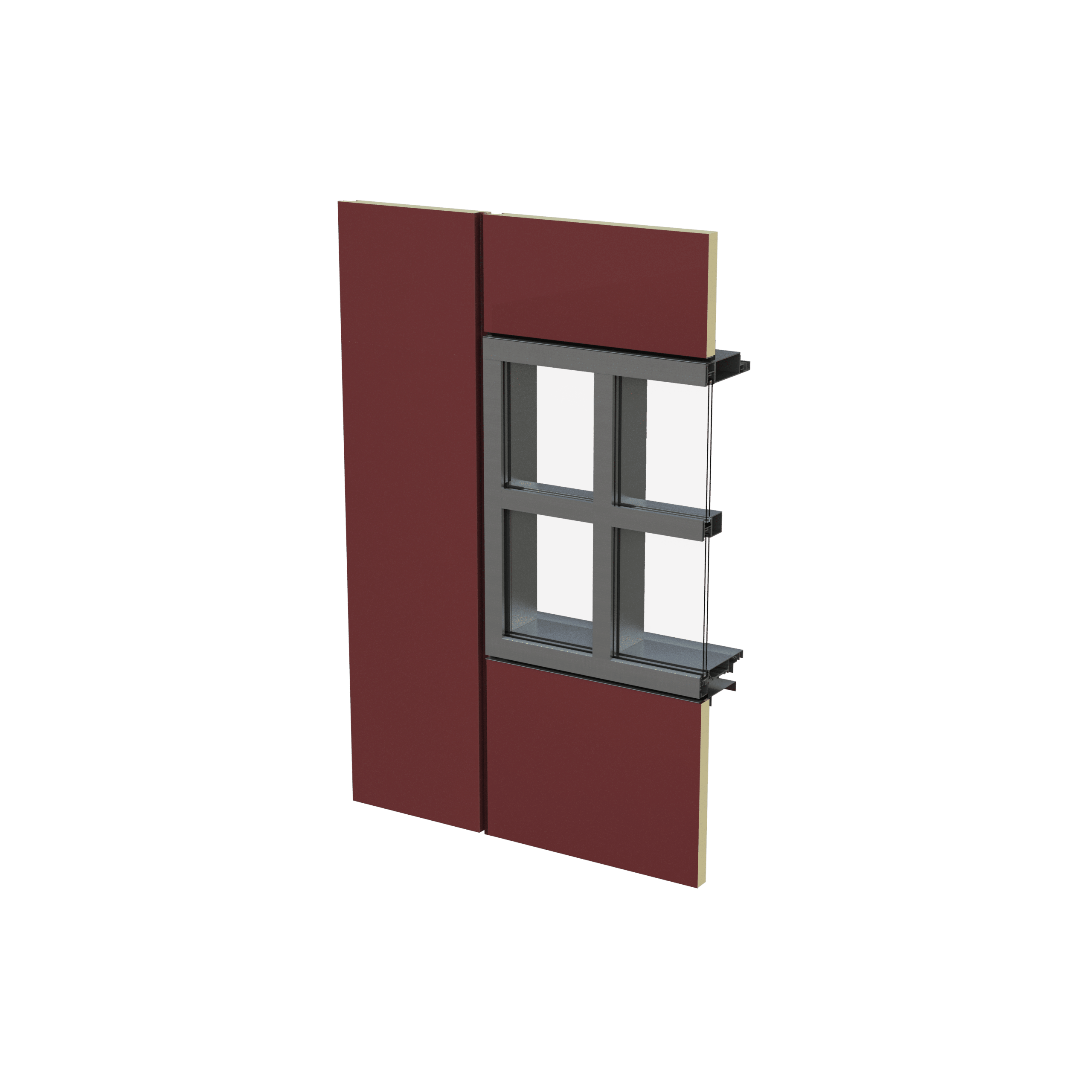

CENTRIA’s Formavue FV-400 window system is designed to provide a thermally efficient window to panel interface with 2” thick Formawall Dimension Series insulated metal panels. This window system integrates into the panel joinery with thermally improved extrusions at the window head and sill. FV-400 windows integrate with both horizontal and vertical panels and are available on spandrel or thru-tube supports, for punched and strip window applications. There are multiple mullion options that are interchangeable within the FV-400 window frame include full mullion (with pressure bar and snap covers) and structural silicone glazed (SSG) mullions.

OPTIONS

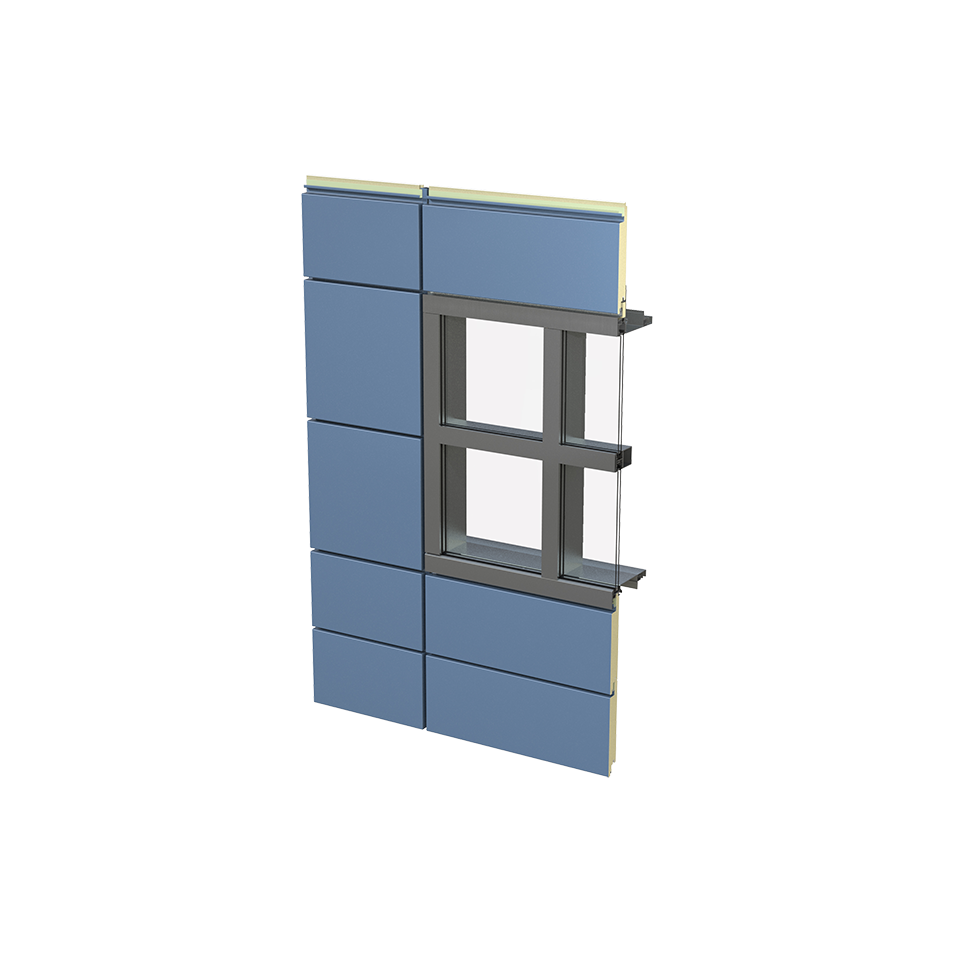

FV-400A

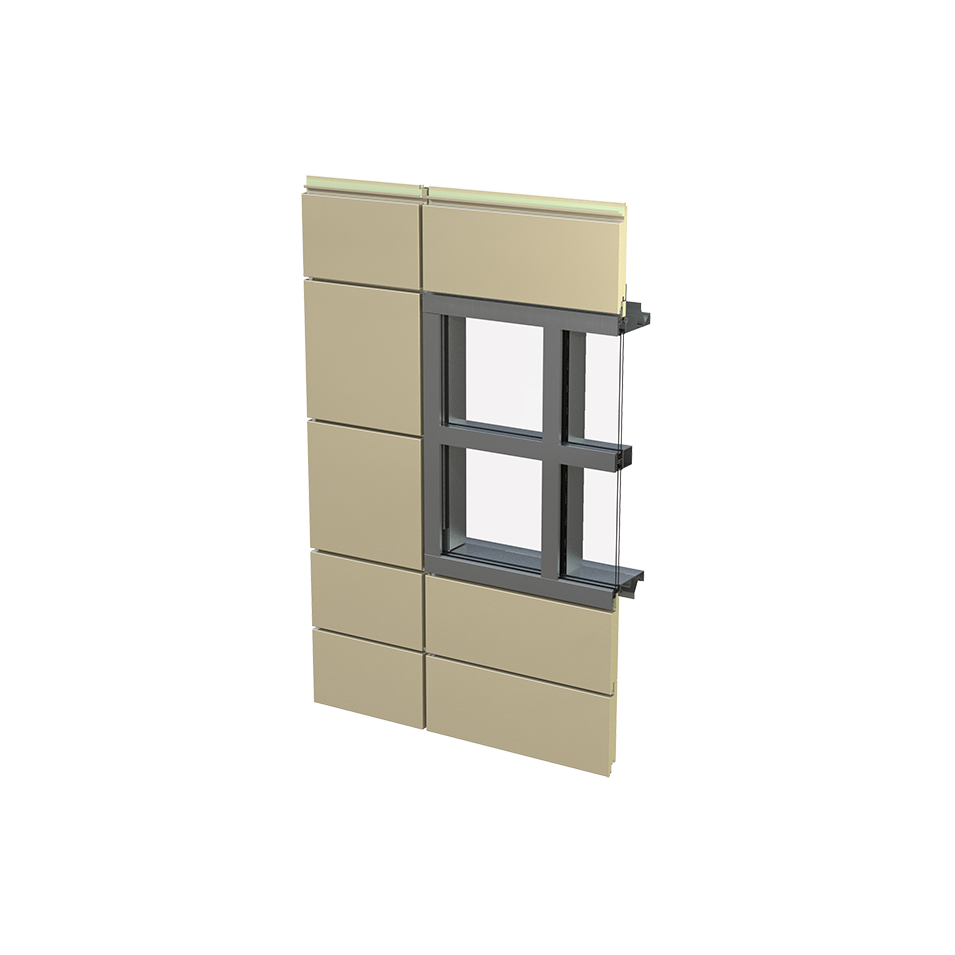

FV-400S

SUPPORT STRUCTURE

Steel Studs (A)

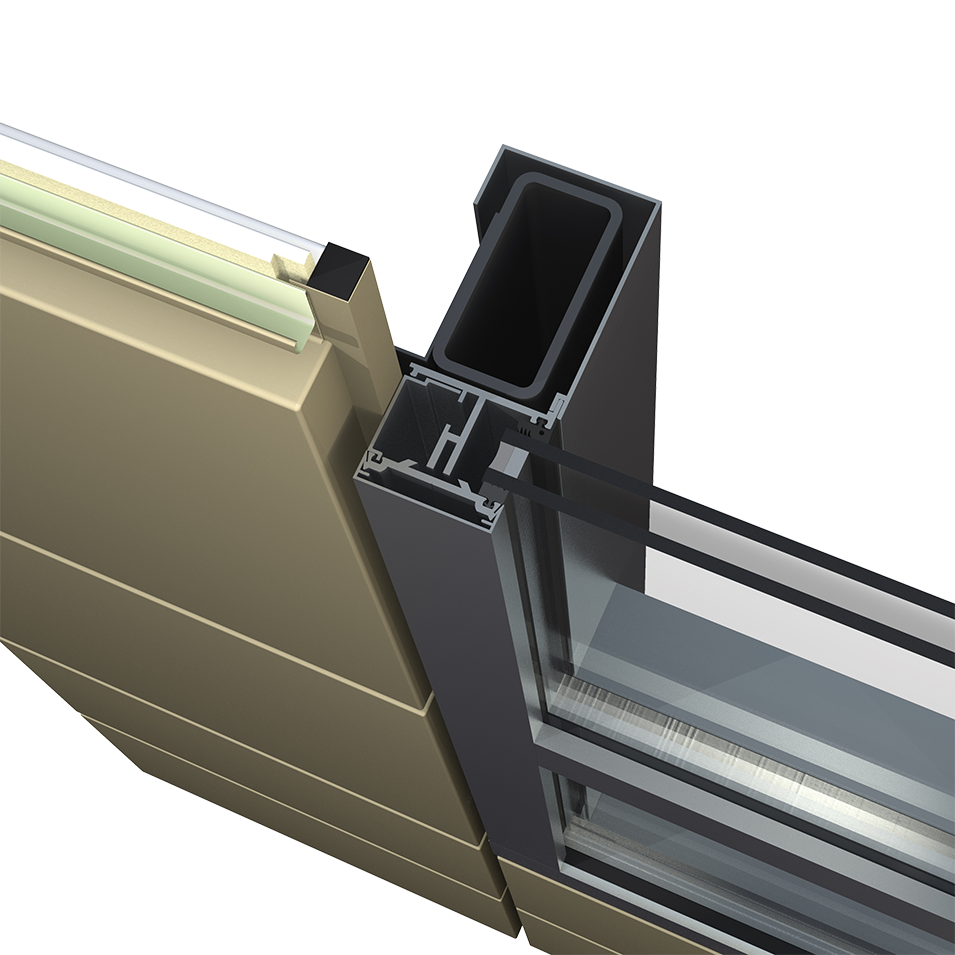

Steel Thru-Tubes (S)

FRAME ASSEMBLY

Field Assembled

PANEL INTEGRATION

Horizontal

Vertical

PANEL THICKNESS INTEGRATION

2″ [51]
